SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set
-
Brand Name Replacement Enerpac's SWi2025TEMAXSPB Country of Origin China Manufacturer SAIVS Maximum Operating Pressure 700bar/10000PSI Maximum Spread (mm) 103.5 Maximum Spreading Force 26.9 ton | 263.3 kN Minimum Order 1 Piece Model SWi2025TEMAXSPB Model Type Twin Wedge and Pump Set Oil Capacity (cm³) 250 Power Source Split Hydraulic Power Tip Clearance (mm) 6 Weight 33 | 72.8 lbs - SWi12/14TM 15.7 Ton Mechanical Flange Spreader STF14H 14 Ton 3.16 in Hydraulic Flange Spreader Set SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi2025TE 26.9 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 26.9 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set FA1TMSTD, 1 Ton 16 mm, Mechanical Flange Alignment Tool FA4TMSTD, 4 Ton 24 mm, Mechanical Flange Alignment Tool
Description
Model:SWi2025TEMAXSPB
Product Line: Industrial Tools
Customizable with special requirement
Practical, Portable, and Lightweight
Revolving Handle: Aids horizontal or vertical spreading
Removable Handle: For improved access
No Finger Pinch-Point
Increased Step-Depth on Upper Steps
Safety Lanyard: 1.0 m length
Forged Key Components: For strength and reliability
Rapid Disassembly and Assembly
Narrow Jaw Teeth: Improved tool wear

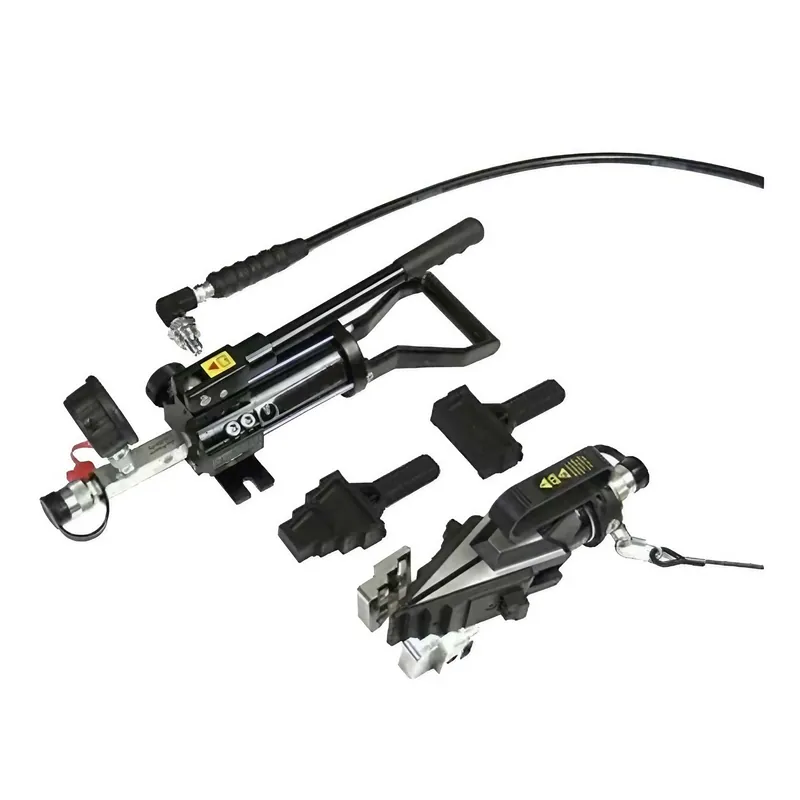

Maxi Set Includes
2 x SWi20/25TE Flange Spreader Wedgehead
2 x 10000 psi Hydraulic Cylinder
2 x Safety Block
2 x Lanyard
2 x hydraulic hose (10000 psi, 700 bar, 2 m with 90-degree elbow)
1 x HP550D Twin-Port Sealed Hand Pump with Gauge (10000 psi, 700 bar)
Case Dimensions (in): 36.6 x 23.6 x 7.1
Image Gallery
Dimensions
| Maximum Operating Pressure (bar) | 700 |
| Model Type | Twin Wedge and Pump Set |
| Maximum Spreading Force (ton) | 26.9 |
| Maximum Spread (mm) | 103.5 |
| Tip Clearance (mm) | 6 |
| Jaw Width(mm) | 60 |
| Power Source | Split Hydraulic Power |
| Oil Capacity (cm3) | 250 |
| Weight (kg) | 33 |
Details
Series Comparison
| Model | Capacity/Ton | Maximum Spread/mm | Tip Clearance/mm | Jaw Width/mm | Oil Capacity/cm³ | Power | Weight/Kg |
| SWi2025TE | 26.9 ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 15 | 33.1 lbs |
| SWI20/25TI | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | * | Integral Hydraulic Type | 18.1 | 39.9 lbs |
| SWi2025TEMAXSPB | 26.9 Ton| 263.6 kN | 103.5 | 6 | 60 | 250 | Split Hydraulic Power | 33 | 72.8 lbs |
| SWi12/14TM | 15.7 Ton| 153.8kN | 103.5 | 6 | * | * | Mechanical | 13 | 28.7 lbs |
| SWi5TI-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Integral Hydraulic Type | 10.5 | 23.1 lbs |
| SWi5TE-S | 8.7 Ton| 85.3 kN | 101 | 4 | 50 | * | Split Hydraulic Power | 8.7 | 19.2 lbs |
| SW14.5TE | 14.5 Ton| 142.2 kN | 81 | 6 | * | * | Integral Hydraulic Type | 10 | 22 lbs |
