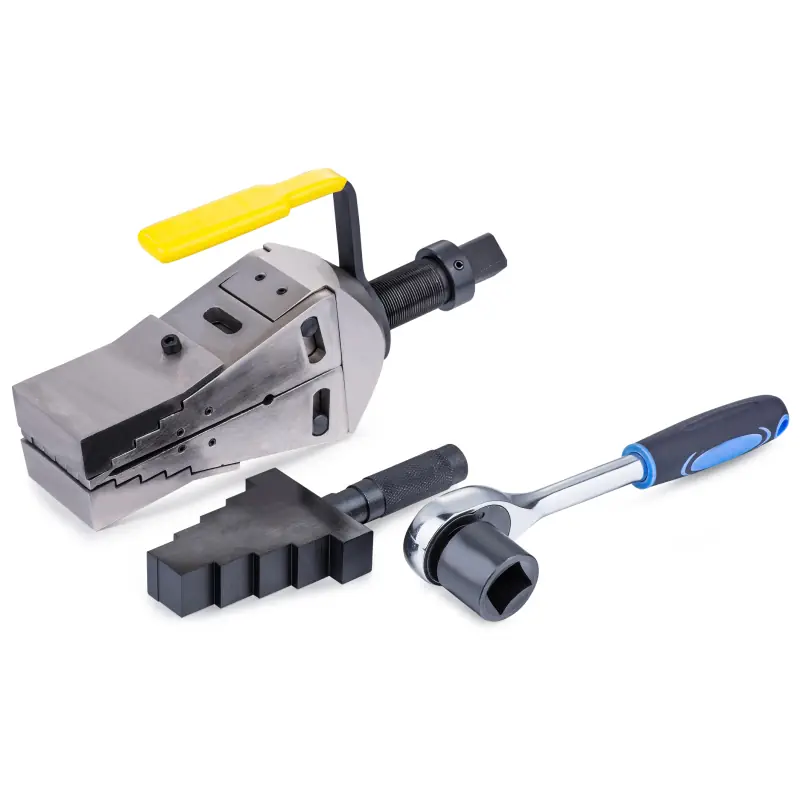

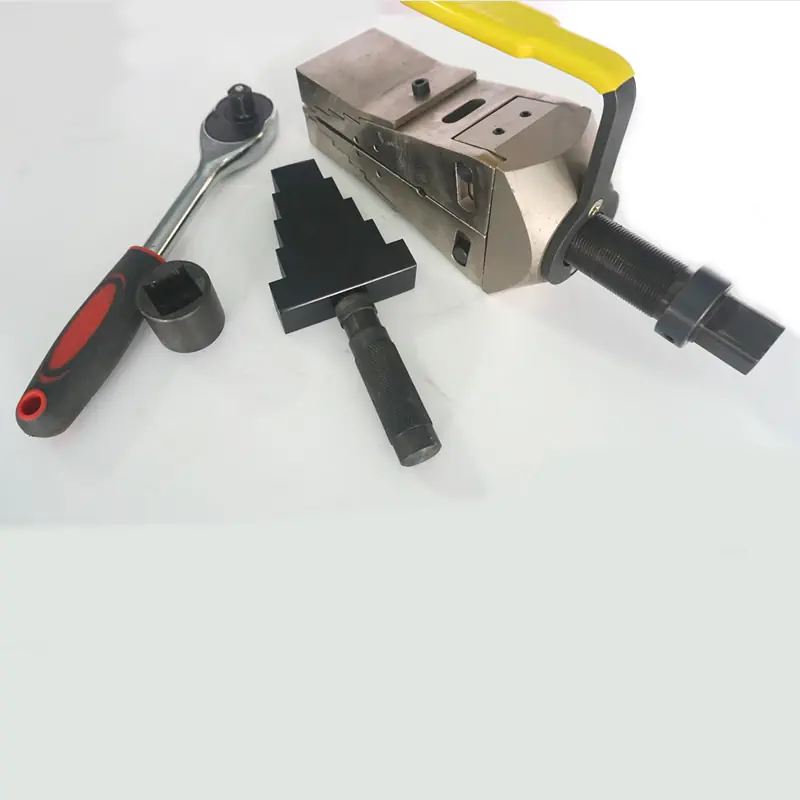

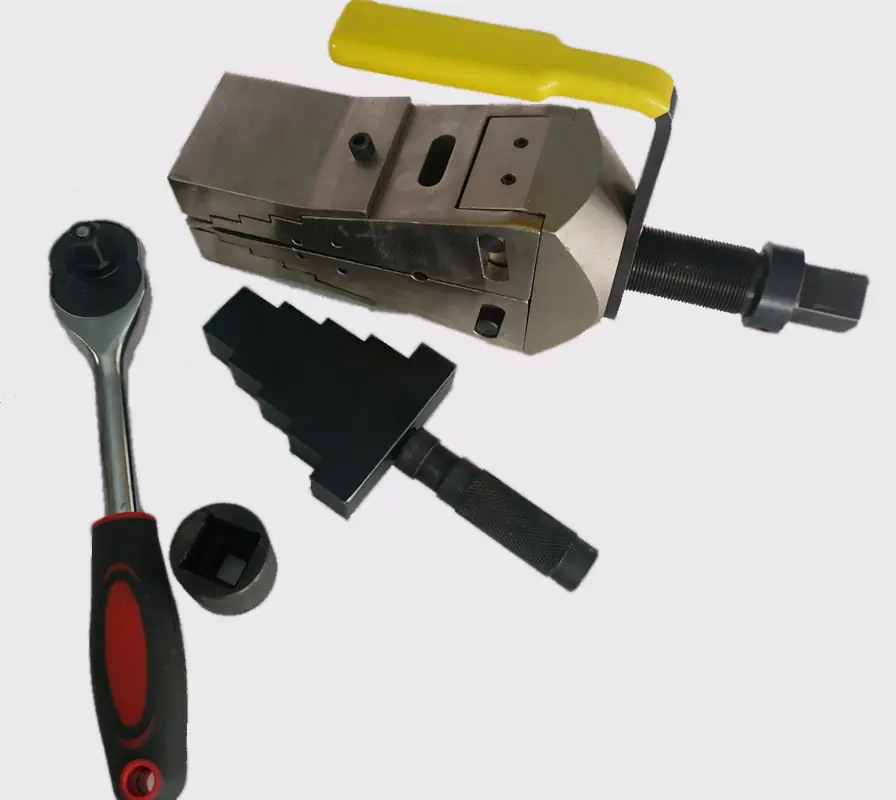

FSM8, 8 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader
-
Brand Name Enerpac FSM8 Replacement Country of Origin China Manufacturer SAIVS Maximum Operating Pressure 700bar /10000 psi Maximum Spread 80mm /3.16 inch Maximum Spread Force 8 ton Minimum Order 1Piece Model FSM8 Product Line Industrial Tools, Bolting Tools Weight 6.5 KG / 14.3lbs - SWi12/14TM 15.7 Ton Mechanical Flange Spreader STF14H 14 Ton 3.16 in Hydraulic Flange Spreader Set SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi2025TE 26.9 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 26.9 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set FA1TMSTD, 1 Ton 16 mm, Mechanical Flange Alignment Tool FA4TMSTD, 4 Ton 24 mm, Mechanical Flange Alignment Tool
Description
Product Line: Industrial Tools
Customizable with special requirement
FSM8 Integral Flanges Spreader Splitter Manual hydraulic flange separator
Optional pumps: SPS Series Manual Pump, PE4 Small Electric Pump and PA4 Small Air hydraulic pump.
Suitable for repair, overhaul, testing and valve replacement.
Integrated wedge concept: Friction-free, smooth and parallel wedge movement eliminates flange damage and spreading arm failure.
Unique interlocking wedge design - no first step bending and risk of slipping out of joint.
Requires very small access gap of only 6 mm.
Stepped spreader arm design - each step can spread under full load.
Hydraulic flange spreaders Use stepped blocks to increase wedge opening up to 80mm.
Few moving parts mean durability and low maintenance.
Image Gallery
Dimensions
| Maximum Spreading Force | Model Number | Tip Clearance | Maximum Spread | Spreader Type | Oil Capacity | Weight |
| ton (kN) | (mm) | (mm) | (cm³) | (kg/lbs) | ||
| 8(72) | FSM-8 | 6 | 80 | Mechanical | / | 6.5/14.3 |
