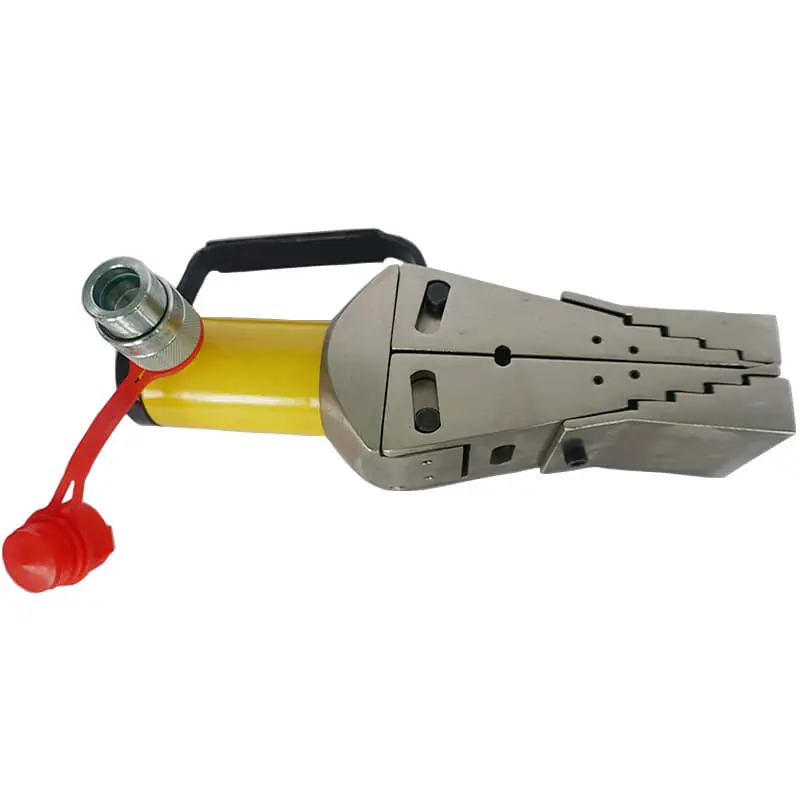

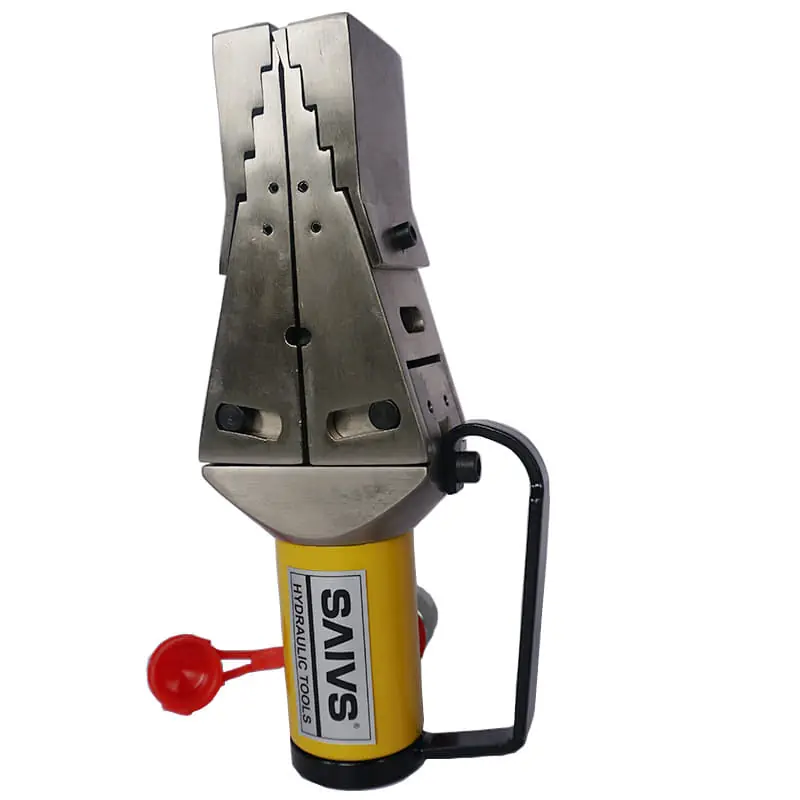

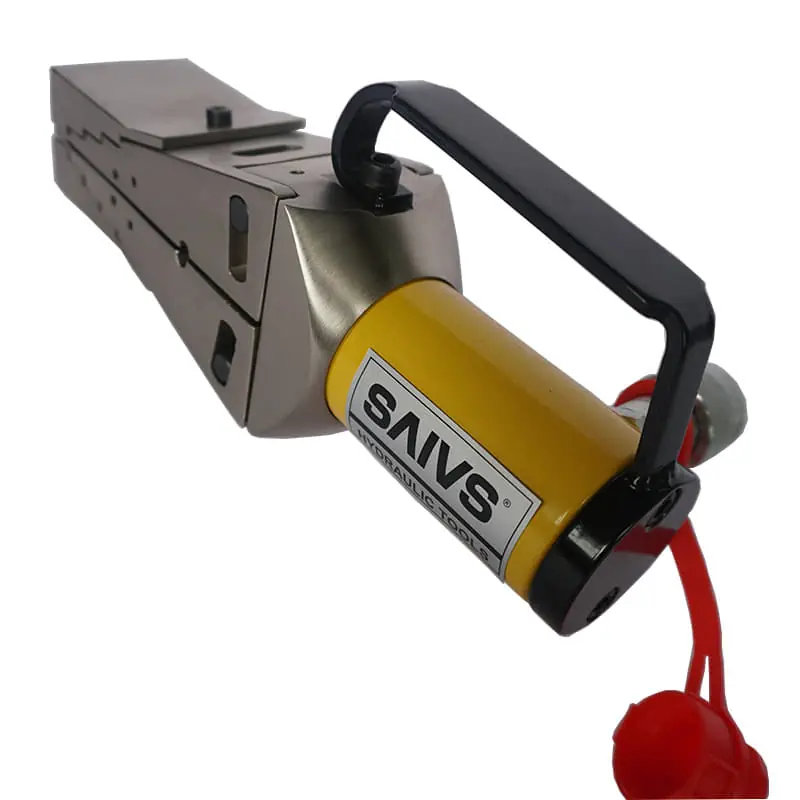

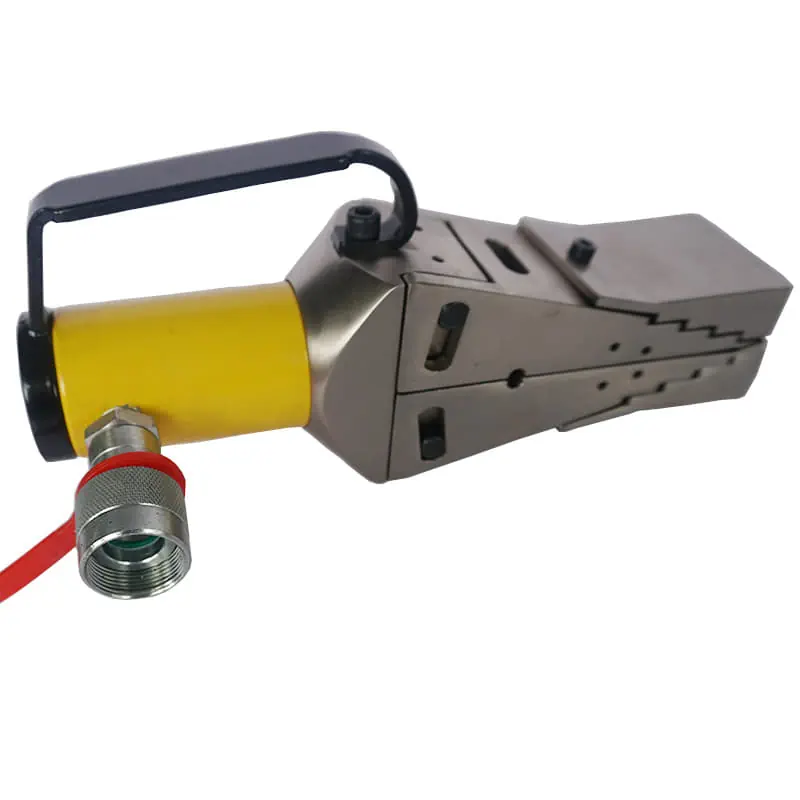

FSH14,14 Ton 3.16 inch/80 mm Hydraulic Industrial Spreader
-
Brand Name Enerpac FSH14 Replacement Country of Origin China Manufacturer SAIVS Maximum Operating Pressure 700bar /10000 psi Maximum Spread 80mm /3.16 inch Maximum Spread Force 14 ton Minimum Order 1Piece Model FSH14 Product Line Industrial Tools, Bolting Tools Weight 7.1 KG / 15.7 lbs - SWi12/14TM 15.7 Ton Mechanical Flange Spreader STF14H 14 Ton 3.16 in Hydraulic Flange Spreader Set SW14.5TI, 14.5 Ton Integral Hydraulic Flange Spreader SWi2025TE 26.9 Ton 250 cm³ Hydraulic Flange Spreader SWI20/25TI 26.9 Ton Integral Hydraulic Flange Spreader SWi5TI-S 8.7 Ton 4 in Integral Hydraulic Flange Spreader Set SWi5TE-S 8.7 Ton External Hydraulic Flange Spreader SWi2025TEMAXSPB 26.9 Ton 250 cm³ External Hydraulic Flange Spreader Maxi Set FA1TMSTD, 1 Ton 16 mm, Mechanical Flange Alignment Tool FA4TMSTD, 4 Ton 24 mm, Mechanical Flange Alignment Tool
Description
Product Line: Industrial Tools
Customizable with special requirement

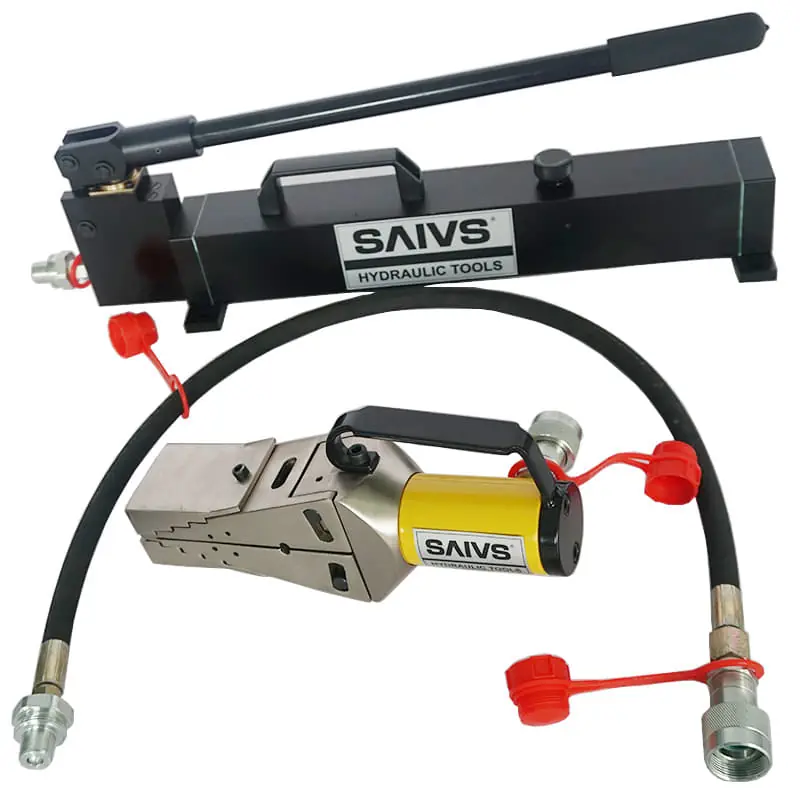

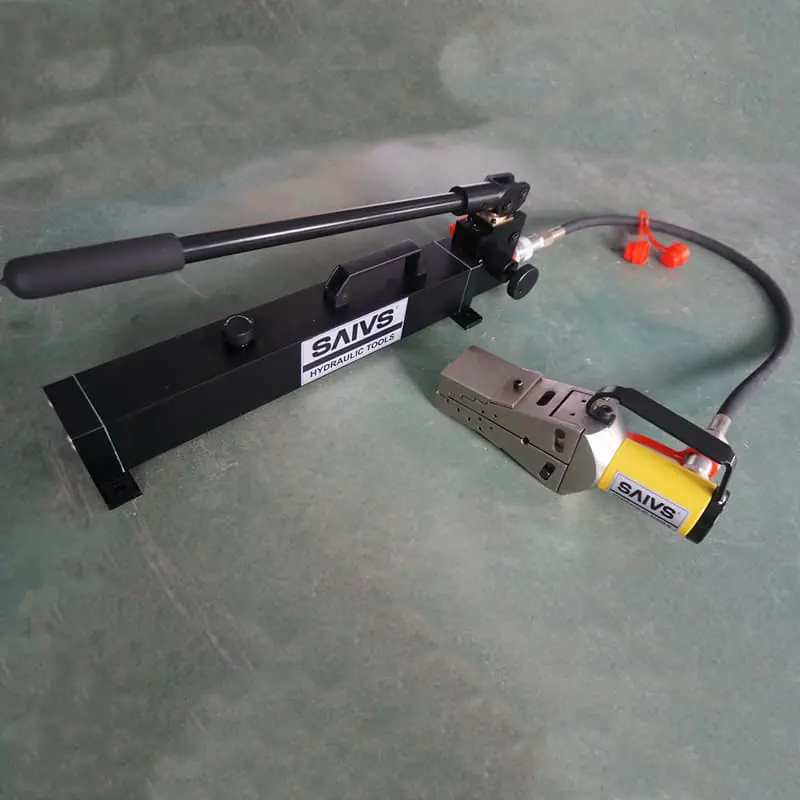

Optional pumps: SPS Series Manual Pump, PE4 Small Electric Pump and PA4 Small Air hydraulic pump.
Suitable for repair, overhaul, testing and valve replacement.
Integrated wedge concept: Friction-free, smooth and parallel wedge movement eliminates flange damage and spreading arm failure.
Unique interlocking wedge design - no first step bending and risk of slipping out of joint.
Requires very small access gap of only 6 mm.
Stepped spreader arm design - each step can spread under full load.
Hydraulic flange spreaders Use stepped blocks to increase wedge opening up to 80mm.
Few moving parts mean durability and low maintenance.
FS-14 integral Flanges Spreader Splitter Manual hydraulic flange separator
Image Gallery
Dimensions
| Maximum Spreading Force | Model Number | Tip Clearance | Maximum Spread | Spreader Type | Oil Capacity | Weight |
| ton (kN) | (mm) | (mm/inch) | (cm³) | (kg/lbs) | ||
| 14(125) | FSH-14 | 6 | 80 / 3.16 | Hydraulic | 78 | 7.1/15.7 |
Details
Video
Literature
