SPB-10D 1-18mm Stationary Small Feed Plate Chamfer
-
Bevel Angle 30°-60° Bevel Width 1-18mm Clamp Thickness 2-40mm Country of Origin China Feed Speed 0-1500r/min Model SPB-10D Plate Width >20mm Spindle Speed 1400r/min Total Power 2000W Voltage AC 3PH 380V 50HZ Other Parameters Single bevel width: 1-10mm Function: board bevel N.W: 80KGS - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Main Features
1.Cold Processed,No spark,Will not affect the material of plate.
2.Automatic feed，High efficiency.
3.Suitable for strip plate and small thin plate
4.Smooth slope,Surface finish can be as high as Ra3.2-Ra6.3.
5.Numerical control display screen,Simple operation,Bevel speed can be adjustable,high precision.
6.Equipped with CNC blades,low consumables.
7.Bevel type:V,Y,K,X etc.
8.Can process carbon steel stainless steel,alloy steel,titanium,composite plate etc.

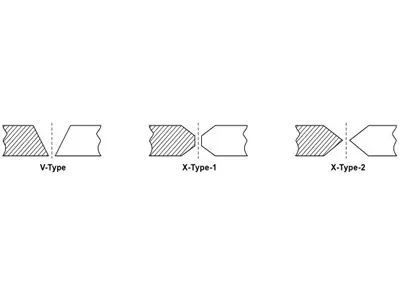

Bevel Type

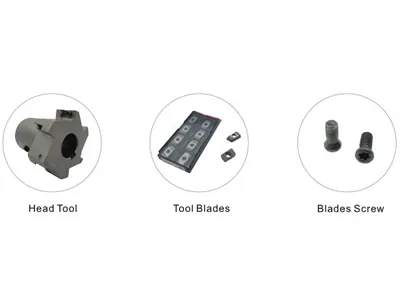

Tool Parts
Engineer Case

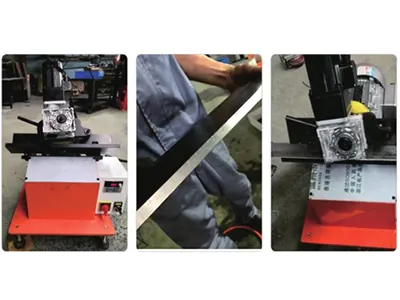

Image Gallery
Dimensions
| Voltage | AC 3PH 380V 50HZ |
| Total power | 2000W |
| Spindle speed | 1400r/min |
| Feed speed | 0-1500r/min |
| Bevel width | 1-18mm |
| Single bevel width | 1-10mm |
| Bevel angle | 30°-60° |
| Clamp thickness | 2-40mm |
| Plate width | >20mm |
| Plate length | / |
| Worktable height | / |
| N.W | 80KGS |
| Process material | CS, SS, Aluminum, bronze, compound plate |
*Non-standard machines are aviable according to customer's requirement.
