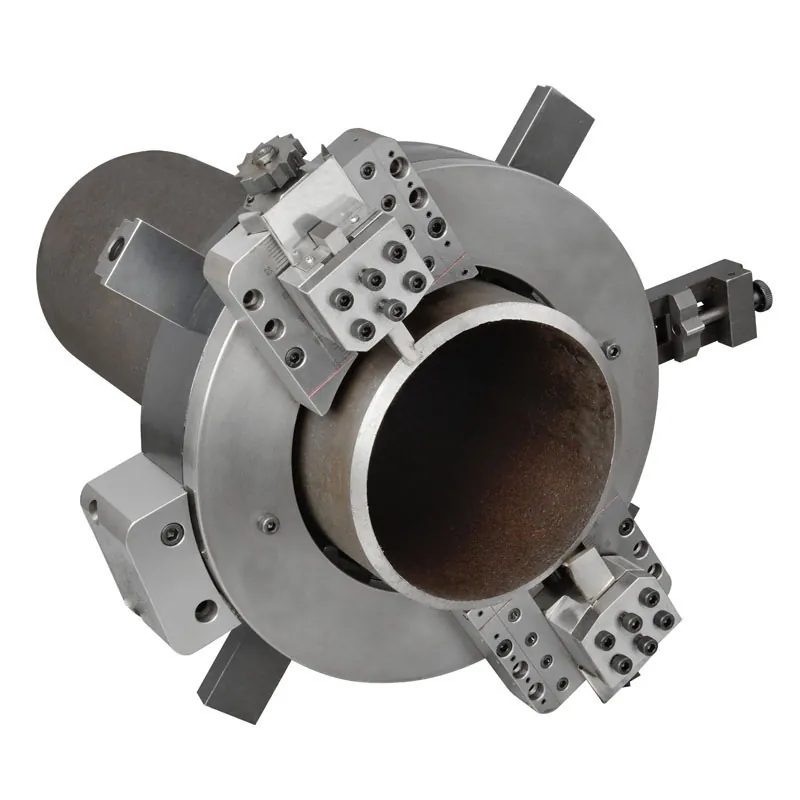

SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm
-
Body Steel/Aluminum Brand SAIVS Country of Origin: China Cutting Mode Cold Cut/Wire Cutting Model SCM89-SCM1430 Motor Electric Motor Rotation Speed 8-50r/min Wall Thickness ≤35 Working Range 3/4"-3"-48"-56" - Flange Facing Machine for Facing Range 50-3000mm SCE Series 25-1230mm External Mount Flange Facing Machine,Electric Pipe Cutting Beveling Machine SCH Series 25-1630mm External Mount Flange Facing Machine, Hydraulic Pipe Cutting Beveling Machine SCP Series 25-1230mm External Mount Flange Facing Machine,Pneumatic Pipe Cutting Beveling Machine Line Boring Machine for Boring Diameter 55-1600mm SCM Series Electro Metabo Type Pipe Cutting and Beveling Machine 25-1430mm SISO Series OD Mounted Portable Automatic Plate Chamfer SPB-10 1-10mm Multi-function Metal Manual Plate Chamfer SPB-100 1-100mm Automatic Feed Plate Chamfer SPB-15 1-15mm Multi-function Metal Manual Plate Chamfer
Description
Product Line: Industrial Tools
Customizable with special requirement
Advantage
Overload protection
Rotation Speed can adjustable
Features
Cold Cutting and Beveling improves safety
Cutting and Beveling simultaneous
Split Frame: easy mounted on pipeline
Tools feed automatically
Fast, precision, On-site Beveling
Minimal Axial and Radial clearance
Light weight and compact design
Easy set-up & Operation
Aluminum Alloy Body Series

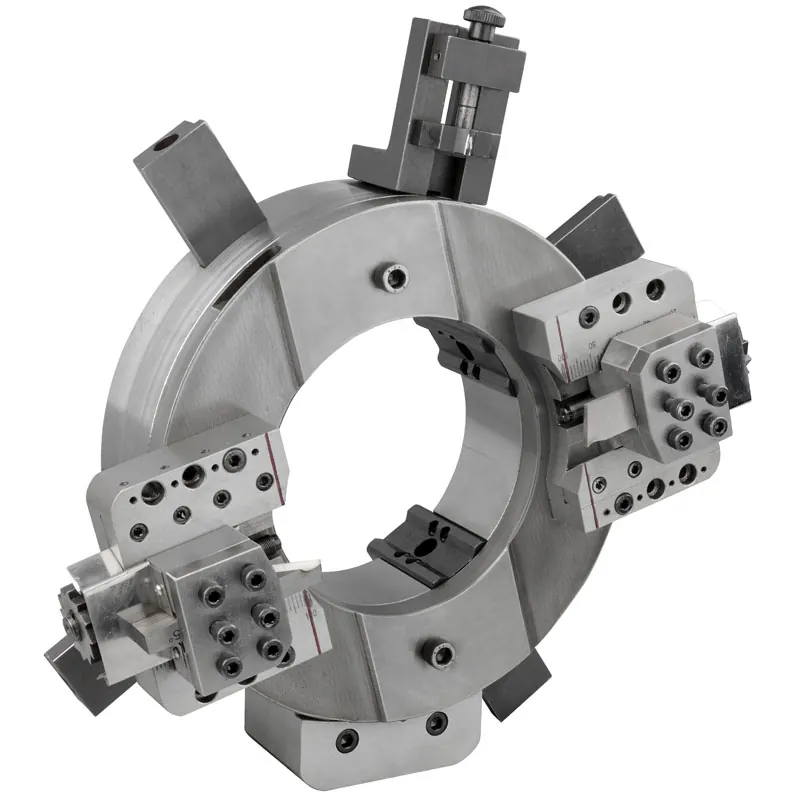

Steel Body Series
Image Gallery
Details
Series Comparison
| Model | Working Range(mm) | Working Range(inch) | Wall Thickness | Rotation Speed |
| SCM-89 | 25-89 | 3/4"-3" | ≤35mm | 50r/min |
| SCM-159 | 50-159 | 2"-5" | ≤35mm | 21r/min |
| SCM-168 | 50-168 | 2"-6" | ≤35mm | 21r/min |
| SCM-230 | 80-230 | 3"-8" | ≤35mm | 20r/min |
| SCM-275 | 125-275 | 5"-10" | ≤35mm | 20r/min |
| SCM-305 | 150-305 | 6"-10" | ≤35mm | 18r/min |
| SCM-325 | 168-325 | 6"-12" | ≤35mm | 16r/min |
| SCM-377 | 219-377 | 8"-14" | ≤35mm | 13r/min |
| SCM-426 | 273-426 | 10"-16" | ≤35mm | 12r/min |
| SCM-457 | 300-457 | 12"-18" | ≤35mm | 12r/min |
| SCM-508 | 355-508 | 14"-20" | ≤35mm | 12r/min |
| SCM-560 | 400-560 | 16"-22" | ≤35mm | 12r/min |
| SCM-610 | 457-610 | 18"-24" | ≤35mm | 11r/min |
| SCM-630 | 480-630 | 20"-24" | ≤35mm | 11r/min |
| SCM-660 | 508-660 | 20"-26" | ≤35mm | 11r/min |
| SCM-715 | 560-715 | 22"-28" | ≤35mm | 10r/min |
| SCM-762 | 600-762 | 24"-30" | ≤35mm | 10r/min |
| SCM-830 | 680-830 | 26"-32" | ≤35mm | 10r/min |
| SCM-914 | 762-914 | 30"-36" | ≤35mm | 10r/min |
| SCM-1066 | 914-1066 | 36"-42" | ≤35mm | 9r/min |
| SCM-1230 | 1066-1230 | 42"-48" | ≤35mm | 9r/min |
| SCM-1430 | 1230-1430 | 48"-56" | ≤35mm | 8r/min |
