50 Ton Hydraulic Cylinder & Jack
-
Capacity 50ton Country of Origin China Manufacturer SAIVS Max.pressure 700bar /10000psi Minimum Order 1Piece Oil Capacity 125 - 2388(cm3) Stroke 16-337mm Weight 7.4-37KG - 100 Ton Hydraulic Cylinder & Jack RACL Series Single-Acting,Aluminium Lock Nut Cylinders 50 Ton Hydraulic Cylinder & Jack MRH20, 8.4 mm 0.33 in Stroke, Hollow Plunger Hydraulic Cylinder MRH120, 8.1 mm 0.32 in Stroke, Hollow Plunger Hydraulic Cylinder CLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders CLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder HCG Series Single-Acting High Tonnage Hydraulic Cylinders HCR Series Double-Acting High Tonnage Cylinders Lift Jack RCS Series Single-acting Low Height Hydraulic Cylinders Jack
Description
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
50 ton CLSG Series Single-Acting High Tonnage Hydraulic Cylinders
- Single Acting, loads return.
- Chrome plated steel plungers.
- Plunger wiper reduces contamination.
- Exclusive guide Ring absorbs eccentric loading.
- Special painted surface for corrosion resistance.
- Easy fixturing with base mounting holes.
- Quick couplings and dust-proof cap included.
- Removable hardened saddles protect plunger.
50 Ton CLRG Series Double-Acting High Tonnage Cylinders Lift Jack
- Double Acting, positive retraction.
- Chrome plated steel plungers.
- Plunger wiper reduces contamination.
- Exclusive guide Ring absorbs eccentric loading.
- Built-in safety valve prevents over-pressurization.
- Special painted surface for corrosion resistance.
- Easy fixturing with base mounting holes.
- Quick couplings and dust-proof cap included.
- Removable hardened saddles protect plunger.

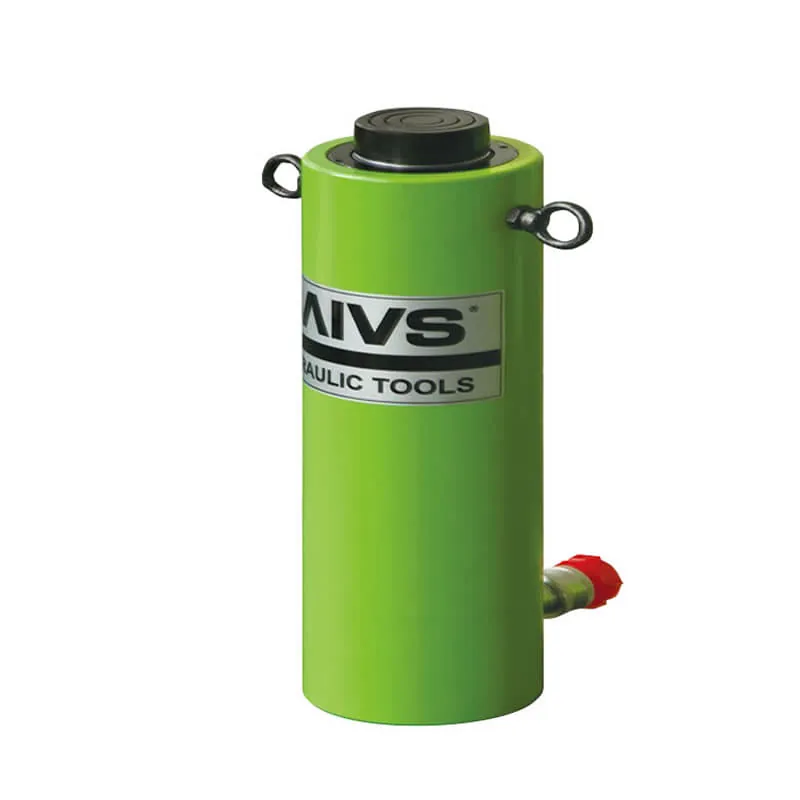

CLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders
- Single acting, loads return.
- Special painted surface for corrosion resistance.
- Lock nut ensures load holding safety.
- Quick couplings and dust-proof cap included.
- Overflow port limits stroke.
- Exclusive guide Ring absorbs eccentric loading.
- Removable hardened saddles protect plunger.
- Mechanical lock nut cylinder can be customized.
- Top and side mounted lifting eyes.

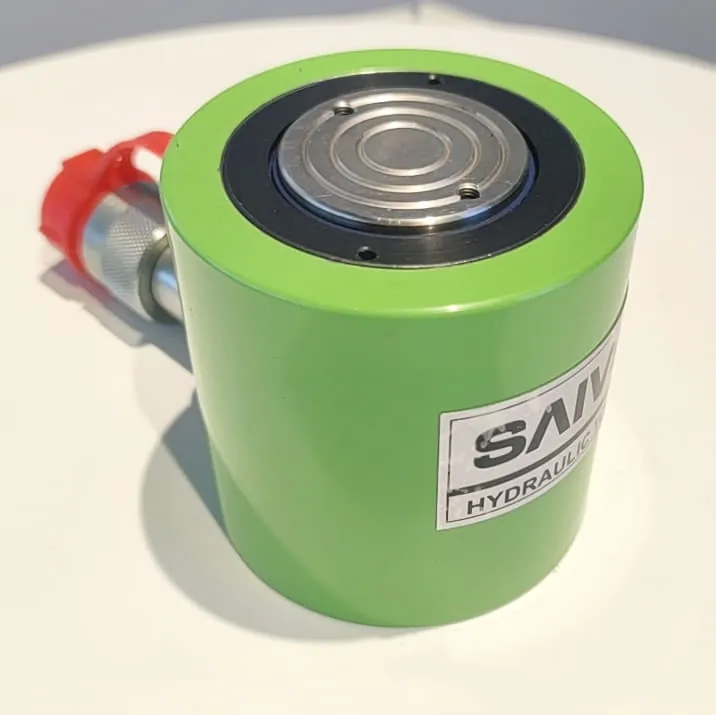

50 Ton RCS Series Single-acting Low Height Hydraulic Cylinders Jack
- Single-acting, spring return.
- Low profile design for narrow applications.
- Special painted surface for corrosion resistance.
- Two plunger threads on grooved end.
- Quick couplings and dust-proof cap included.
- Handles on some models for easy carrying.
- No saddle required with grooved end.
- Customizable with special requirements.
50 Ton RC Seires Single-Acting Hydraulic Cylinders
- Single-acting, high strength spring return.
- Exclusive guide Ring absorbs eccentric loading.
- Special painted surface for corrosion resistance.
- Easy fixturing with collar threads and base mounting holes.
- Quick coupling and dust cap included.
- Removable hardened grooved saddles.
- Customizable with special requirements.
50 Ton RSM Series Single-Acting Low Flat Hydraulic Ram
- Single-acting, spring return.
- Flat design for confined spaces.
- No saddle required with grooved end.
- Two plunger threads on grooved end.
- Special painted surface for corrosion resistance.
- Handles on some models for easy carrying.
- Quick coupling and dust cap included.
- Customizable with special requirements.
SAIVS 50 Ton Hydraulic Cylinder & Jack PDF Download
Image Gallery
Dimensions
| Model Number | Cylinder Capacity ton(KN) | Stroke(mm) | Oil Capacity(cm³) | Weight(kg) |
| CLSG | 50(550) | 50/100/150/200/300 | 392/784/1176/1568/2352 | 13 |
| CLRG | 50 | 50/100/150/200/300 | 392-2352 / 200-1200 | 24 |
| CLL | 50(549) | 16 | 125 | 7.4 |
| RCS | 50(549) | 60 | 471 | 13.3 |
| RC | 50(498) | 51/101/159/337 | 361/716/1126/2388 | 15/19/23/37 |
| RSM | 50(549) | 16 | 125 | 7.4 |
Details
Application
Hydraulic Cylinder jacks are ideal for safely lifting and holding heavy industrial machinery while maintenance or repairs are conducted.
These jacks help support and position critical structural elements during construction, ensuring proper alignment and safety.
Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.
Railways use hydraulic cylinder jacks to lift locomotives, allowing access for inspections and maintenance.
Welders use hydraulic cylinder jacksto accurately position heavy workpieces for welding tasks, ensuring precision and safety.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
Video
Literature
- 1.Proper application of hydraulic cylinders
- 2.Have you ever understood the classification and working principle of hydraulic cylinder jacks?
- 3. Tips for Choosing the Right RRH Series Double-Acting Hollow Cylinders Jacks
- 4.Hydraulic Pusher: What Additional Information and Parameters People Look for When Purchasing from CH
- 5.Optimizing Hydraulic Cylinder/Jack Performance with Advanced Technologies
- 6.SAIVS Shipment Log NO.2: Our Success in Hydraulic Equipment Supply to Israel
- 7.Hydraulic Flange Spreaders: A Vital Tool for Industry
- 8.Top Tool Brands with the Most Trustworthy Reputation
- 9.The Best Toolmakers Around the World - A Comparative Analysis
- 10.electric hydraulic torque wrench pumps are powerful tools that are perfect
FAQs
1. What is the difference between a hydraulic jack and a hydraulic cylinder?
A hydraulic jack is a device used for lifting heavy loads using hydraulic pressure. It typically consists of a pump,
cylinders, and an actuating mechanism. On the other hand, a hydraulic cylinder is a component within a hydraulic
system that converts fluid power into linear mechanical force.
2. What does a cylinder do in a hydraulic jack?
The cylinder in a hydraulic jack is responsible for generating the lifting force. When hydraulic fluid is pumped into the cylinder,
it pushes against a piston, creating pressure that lifts the load. The size and design of the cylinder
determine the lifting capacity and stroke length of the hydraulic jack.
3. What is a hydraulic jack?
A hydraulic jack is a mechanical device used to lift heavy objects or apply great force using hydraulic power.
It uses the principle of Pascal's law, where a small force applied to a small area can generate a much larger
force over a larger area. Hydraulic jacks are commonly used in automotive, industrial, and construction applications.
4. What is a jack cylinder?
A jack cylinder refers to the hydraulic cylinder component found in hydraulic jack systems.
It is a cylindrical chamber that houses a piston and hydraulic fluid. When pressure is applied to the fluid,
it creates a pushing or pulling force that is used to lift or move heavy objects. The jack cylinder plays a vital role
in converting hydraulic pressure into mechanical force for lifting and supporting loads.
