100 Ton Hydraulic Cylinder & Jack
-
Capacity 100ton Country of Origin China Manufacturer SAIVS Max.pressure 700bar /10000psi Minimum Order 1Piece Oil Capacity 246 - 4620(cm3) Stroke 16-300mm Weight 15.5-106KG - 100 Ton Hydraulic Cylinder & Jack RACL Series Single-Acting,Aluminium Lock Nut Cylinders 50 Ton Hydraulic Cylinder & Jack MRH20, 8.4 mm 0.33 in Stroke, Hollow Plunger Hydraulic Cylinder MRH120, 8.1 mm 0.32 in Stroke, Hollow Plunger Hydraulic Cylinder CLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders CLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder HCG Series Single-Acting High Tonnage Hydraulic Cylinders HCR Series Double-Acting High Tonnage Cylinders Lift Jack RCS Series Single-acting Low Height Hydraulic Cylinders Jack
Description
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement

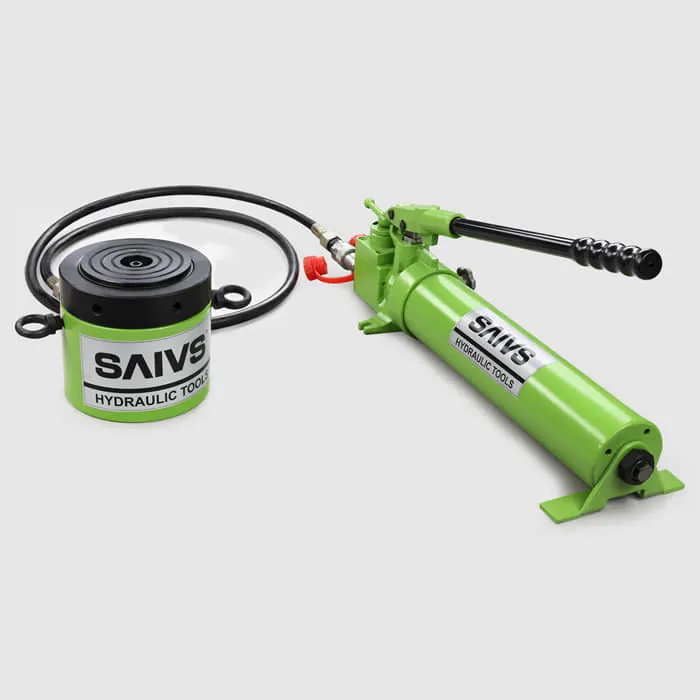

100 ton CLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder
- Single-acting, load return.
- Low profile design for narrow applications.
- Special painted surface for corrosion resistance.
- Lock nut ensures long-term load holding safety.
- Quick couplings and dust-proof cap included.
- Overflow port limits stroke.
- Removable hardened grooved saddles.
- Customizable with special requirements.
- Integral tilt saddles with maximum tilt angles up to 4°.
- Compatible with SAIVS high-quality high-pressure hoses.
- CLL-Series Lock-Nut Cylinders available for longer stroke applications.
100 Ton CLSG Series Single-Acting High Tonnage Hydraulic Cylinders
- Single Acting, loads return.
- Chrome plated steel plungers.
- Plunger wiper reduces contamination.
- Exclusive guide Ring absorbs eccentric loading.
- Special painted surface for corrosion resistance.
- Easy fixturing with base mounting holes.
- Quick couplings and dust-proof cap included.
- Removable hardened saddles protect plunger.
100 Ton RRH Series Double-Acting Hollow Cylinders Jack
- Double-acting cylinder for fast retraction.
- Hollow plunger design for both pull and push forces.
- Dual dust-proof ring structure maintains internal cleanliness.
- Exclusive guide ring absorbs eccentric loading, reducing wear.
- Built-in safety valve prevents over pressurization.
- Special painted surface for corrosion resistance.
- Easy fixturing with collar threads and base mounting holes.
- Quick couplings and dust-proof cap included.
- Floating center tube for extended product life.
- Customizable with special requirements.
100 Ton CLL Series Single-Acting High Tonnage Lock-Nut Hydraulic Cylinders
- Single acting, loads return.
- Special painted surface for corrosion resistance.
- Lock nut ensures load holding safety.
- Quick couplings and dust-proof cap included.
- Overflow port limits stroke.
- Exclusive guide Ring absorbs eccentric loading.
- Removable hardened saddles protect plunger.
- Mechanical lock nut cylinder can be customized.
- Top and side mounted lifting eyes.
100 Ton RCS Series Single-acting Low Height Hydraulic Cylinders Jack
- Single-acting, spring return.
- Low profile design for narrow applications.
- Special painted surface for corrosion resistance.
- Two plunger threads on grooved end.
- Quick couplings and dust-proof cap included.
- Handles on some models for easy carrying.
- No saddle required with grooved end.
- Customizable with special requirements.

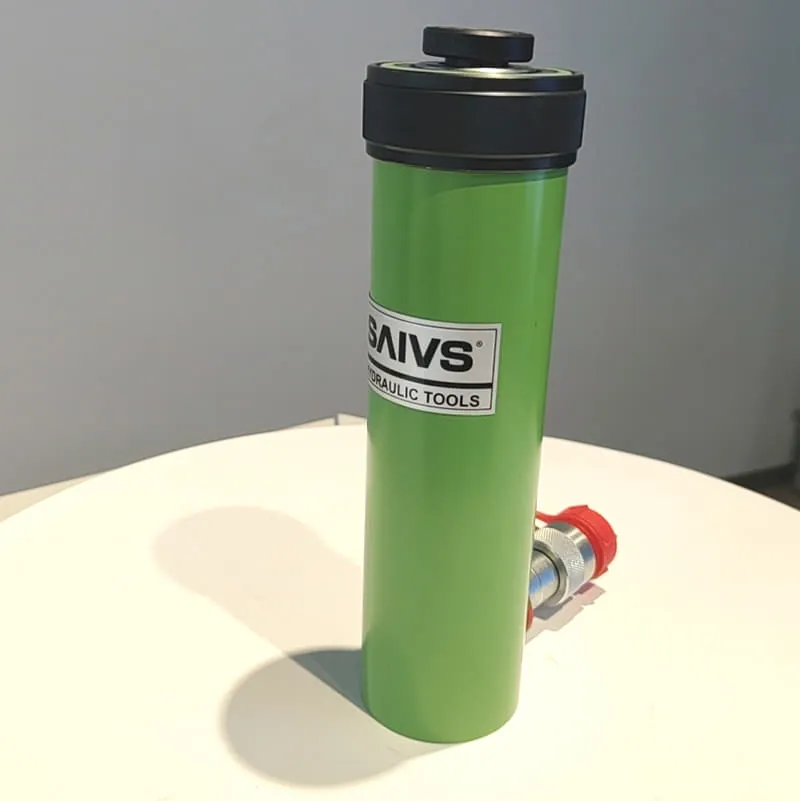

100 Ton RC Seires Single-Acting Hydraulic Cylinders
- Single-acting, high strength spring return.
- Exclusive guide Ring absorbs eccentric loading.
- Special painted surface for corrosion resistance.
- Easy fixturing with collar threads and base mounting holes.
- Quick coupling and dust cap included.
- Removable hardened grooved saddles.
- Customizable with special requirements.
100 Ton RSM Series Single-Acting Low Flat Hydraulic Ram
- Single-acting, spring return.
- Flat design for confined spaces.
- No saddle required with grooved end.
- Two plunger threads on grooved end.
- Special painted surface for corrosion resistance.
- Handles on some models for easy carrying.
- Quick coupling and dust cap included.
- Customizable with special requirements.
100 Ton RCH Series Single-Acting Hollow Cylinders
- Single-acting, high strength spring return.
- Hollow plunger design for both pull and push forces.
- Dual dust-proof ring structure maintains internal cleanliness.
- Exclusive guide ring absorbs eccentric loading, reducing wear.
- Special painted surface for corrosion resistance.
- Easy fixturing with collar threads and base mounting holes.
- Quick couplings and dust-proof cap included.
- Floating center tube for extended product life.
- Customizable with special requirements.
- Compatible with SAIVS high-quality high-pressure hoses.
- Pressure Display Unit (optional) on pressure gauges.
- Suitable pump selection for optimum combination.
100 Ton CLRG Series Double-Acting High Tonnage Cylinders Lift Jack
- Double Acting, positive retraction.
- Chrome plated steel plungers.
- Plunger wiper reduces contamination.
- Exclusive guide Ring absorbs eccentric loading.
- Built-in safety valve prevents over-pressurization.
- Special painted surface for corrosion resistance.
- Easy fixturing with base mounting holes.
- Quick couplings and dust-proof cap included.
- Removable hardened saddles protect plunger.
SAIVS 100 Ton Hydraulic Cylinder & Jack PDF Download
Image Gallery
Dimensions
| Model Number | Cylinder Capacity ton(KN) | Stroke(mm) | Oil Capacity(cm³) | Weight(kg) |
| CLP | 100(1027) | 50 | 734 | 27 |
| CLSG | 100(1077) | 50/100/150/200/300 | 770/1540/2310/3080/4620 | 16 |
| CLRG | 100 | 50/100/150/200/300 | 770-4620/377-2262 | 24 |
| CLL | 100(887) | 16 | 246 | 15.5 |
| RCS | 100(887) | 57 | 877 | 24.5 |
| RC | 100(933) | 168/260 | 2229/3449 | 59/72 |
| RSM | 100(887) | 16 | 246 | 15.5 |
| RRH | 100 | 38/76/153/257 | 514-3477/346-2341 | 33/61/79/106 |
| RCH | 100(947) | 76 | 1028 | 63.5 |
Details
Application
Construction equipment often requires precise positioning for maintenance and repair tasks, and Hydraulic Cylinder jacks provide the necessary lifting capability.
Wind turbines require periodic maintenance, and hydraulic cylinder jacksenable technicians to reach and service these towering structures.
Aircraft maintenance crews rely on hydraulic cylinder jacksto raise aircraft for inspection and repairs.
Shipping yards use hydraulic cylinder jacksto load and unload heavy shipping containers from trucks and ships.
Agricultural equipment can be adjusted to the correct height for various farming tasks using hydraulic cylinder jacks.
When installing large industrial equipment, hydraulic cylinder jacksare used to safely and precisely position components for assembly.
In the renewable energy sector, hydraulic cylinder jacks are used to position and adjust solar panel arrays for optimal sun exposure and energy generation.
Video
Literature
- 1.How to maintain the air hydraulic pump
- 2.SAIVS Hydraulic Torque Wrenches: Functionality, Quality, and Competitive Pricing
- 3.Have you ever understood the classification and working principle of hydraulic cylinder jacks?
- 4.Hydraulic Pusher: What Additional Information and Parameters People Look for When Purchasing from CH
- 5.Optimizing Hydraulic Cylinder/Jack Performance with Advanced Technologies
- 6.Raising the Bar: The Science and Art of Choosing the Right Hydraulic Cylinder Jack Supplier for Your
- 7.SAIVS Shipment Log NO.1: Tracking the Delivery of Customized Hydraulic Tools
- 8.Top Tool Brands with the Most Trustworthy Reputation
FAQs
1. What is a hydraulic jack?
A hydraulic jack is a mechanical device used to lift heavy objects or apply great force using hydraulic power.
It uses the principle of Pascal's law, where a small force applied to a small area can generate a much larger
force over a larger area. Hydraulic jacks are commonly used in automotive, industrial, and construction applications.
2. What is a jack cylinder?
A jack cylinder refers to the hydraulic cylinder component found in hydraulic jack systems.
It is a cylindrical chamber that houses a piston and hydraulic fluid. When pressure is applied to the fluid,
it creates a pushing or pulling force that is used to lift or move heavy objects. The jack cylinder plays a vital role
in converting hydraulic pressure into mechanical force for lifting and supporting loads.
3. What is the difference between a hydraulic jack and a hydraulic cylinder?
A hydraulic jack is a device used for lifting heavy loads using hydraulic pressure. It typically consists of a pump,
cylinders, and an actuating mechanism. On the other hand, a hydraulic cylinder is a component within a hydraulic
system that converts fluid power into linear mechanical force.
4. What does a cylinder do in a hydraulic jack?
The cylinder in a hydraulic jack is responsible for generating the lifting force. When hydraulic fluid is pumped into the cylinder,
it pushes against a piston, creating pressure that lifts the load. The size and design of the cylinder
determine the lifting capacity and stroke length of the hydraulic jack.
