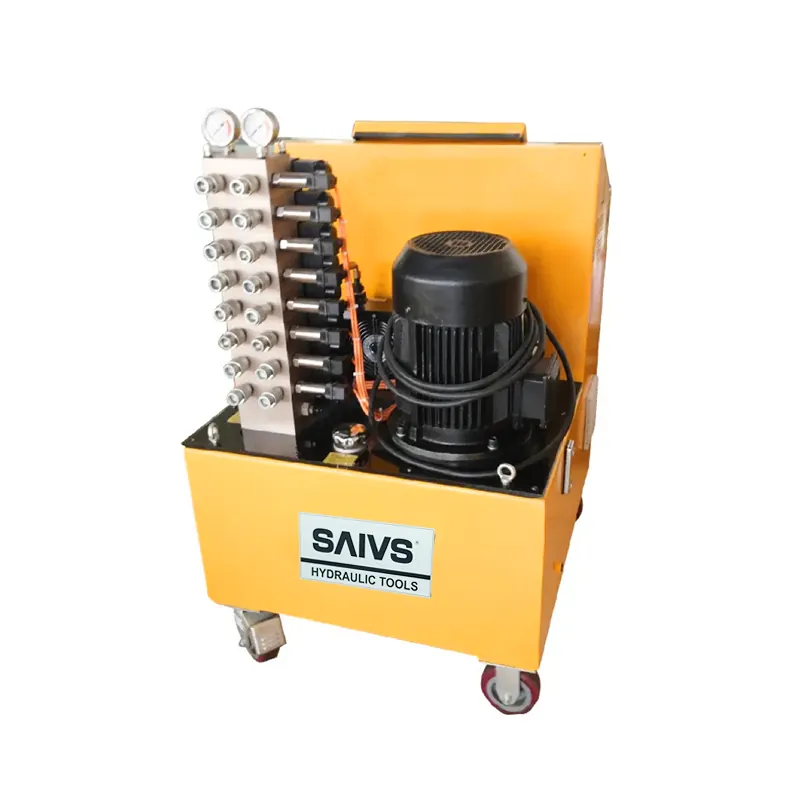

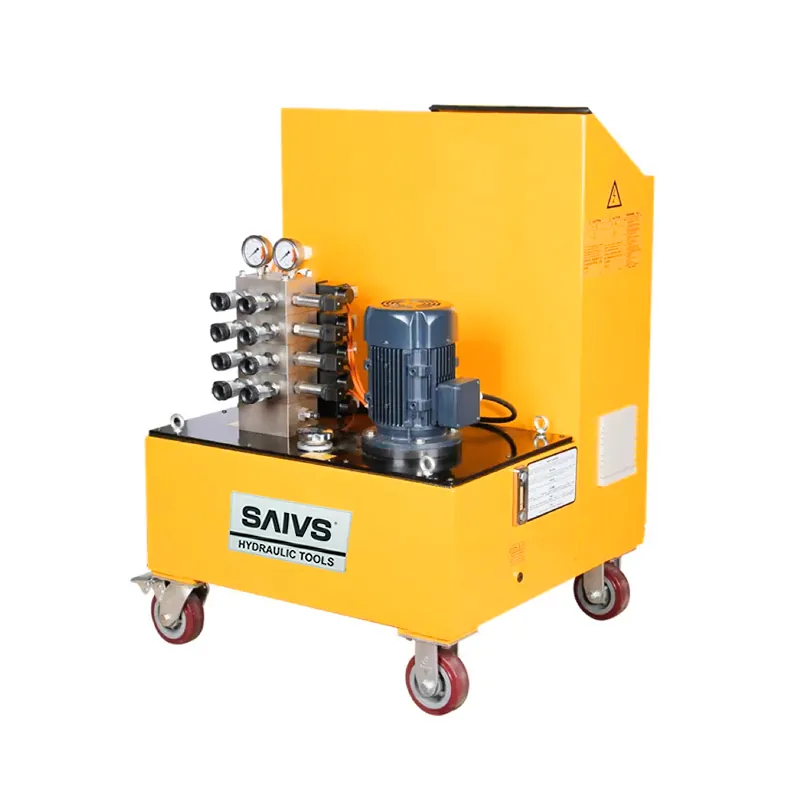

HLC, Double Acting, PLC Synchronous Lifting Systems
-
Acting Way Double Acting Country of Origin China Lifting Points 4-24 Manufacturer SAIVS Minimum Order 1 Piece Model HLC-4 | HLC-8 | HLC-12 | HLC-16 | HLC-24 Motor Power 2.2-5.5 KW Oil Tank Capacity 130-200 L Synchronous Precision ≤±0.5 mm Voltage 380 AC/V Weight 215-428 kg Working Pressure 700 bar Other Parameters Control Mode: Pulse-Width-Modulation - HLA , Double Acting，PLC Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLE, Intelligent quantitative, Synchronous Lifting Systems HPA, 60-110 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPB, 50-1000 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPC, 100-600 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System HPD, 100-200 Ton, Clamp Rail Type Synchronous Pushing Hydraulic System SCM Series Hydraulic Pusher
Description
Product Line: Industrial Tools
Customizable with special requirement
This system uses a plunger hydraulic pump with balance valves to control the lifting and lowering of Hydraulic Cylinders, ensuring synchronization and preventing hydraulic impact. It features pressure and displacement sensors to monitor load weight and lifting height in real time. The electric control system, powered by PLC, continuously adjusts displacement errors to maintain synchronization, based on sensor data and commands from the master control station. The system also ensures safe operation, preventing free fall in case of power failure.

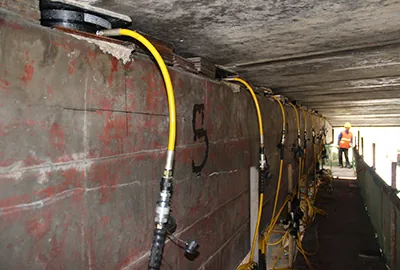

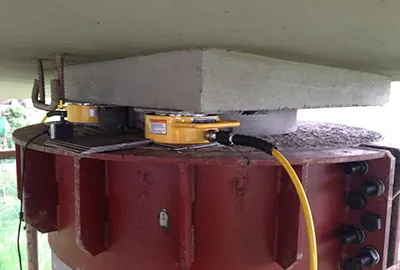

Applications
|
|
Image Gallery
Details
Series Comparison
| Model | Lifting Points | Synchronous Precision | Motor Power | Voltage | Working Pressure | Flow | Oil Tank Capacity | Dimensions | Weight |
| (mm) | (KW) | (AC/V) | (MPa) | (L) | (L) | (mm) | (kg) | ||
| HLC-4 | 4 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 755x865x1205 | 215 |
| HLC-8 | 8 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 755x865x1205 | 235 |
| HLC-12 | 12 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 755x865x1205 | 255 |
| HLC-16 | 16 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 200 | 1090x950x1120 | 375 |
| HLC-24 | 24 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 200 | 1090x950x1120 | 428 |
