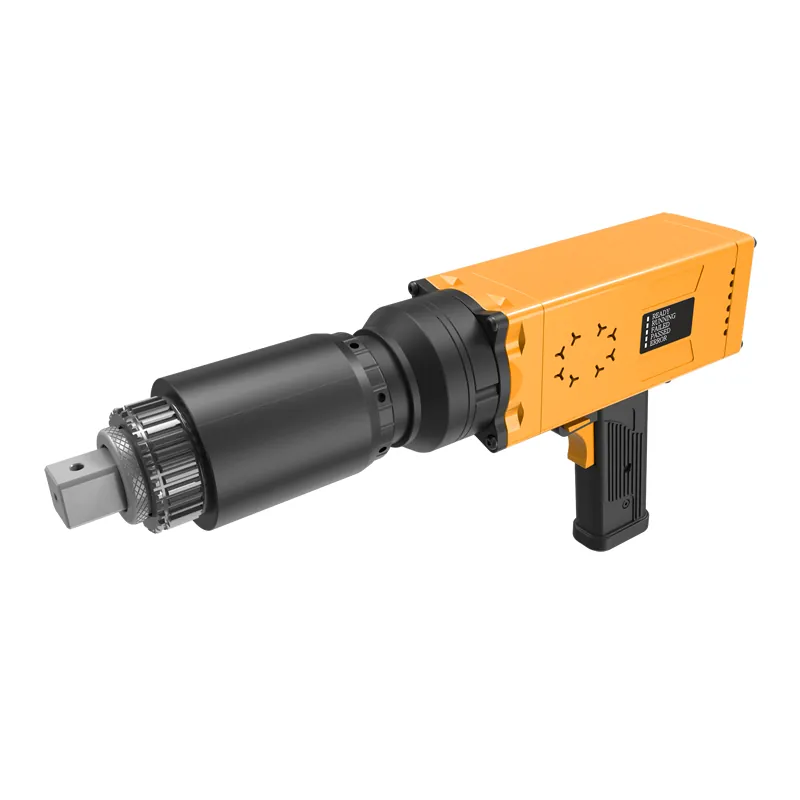

SAT-A-TC Series Servo Electric Torque Wrench
-
Country of Origin China Manufacturer SAIVS Model SAT-A-TC Series Precision ±2% Torque Range 10-300 Nm Weight 4.3-5 kg Other Parameters Driving Square: 0.75" Speed: 21.5-180 RPM Noise: 80 dB Maximum connection nodes: 32 to 256 - Battery Powered Brushless Torque Wrench SCW-A Series SCW-14A , 338-1350Nm, 0.75/1 inch Battery Powered Brushless Torque Wrench SCW-30A , 700-3000Nm, 1 inch Battery Powered Brushless Torque Wrench SCW-20A , 525-2000Nm, 1 inch Battery Powered Brushless Torque Wrench SCW-3A , 100-300Nm, 0.75 inch Battery Powered Brushless Torque Wrench SCW-40A , 1000-4000Nm, 1 /1.5 inch Battery Powered Brushless Torque Wrench SCW-60A , 1500-6000Nm,1.5 inch Battery Powered Brushless Torque Wrench SCW-5A , 150-500Nm, 0.75 inch Battery Powered Brushless Torque Wrench SCW-80A , 2000-8000Nm,1.5 inch Battery Powered Brushless Torque Wrench SCW-7A , 200-700Nm, 0.75 inch Battery Powered Brushless Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Tightening (available with user controller functionality).
External input data and free format.
Maximum ±2% precision with wider torque.
Precision is higher with the sensor.

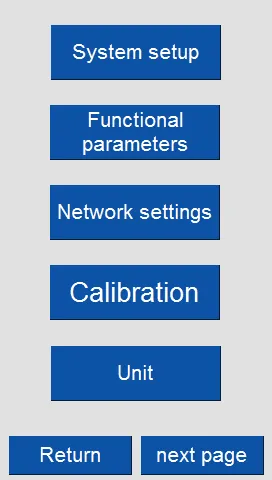

Graphical menu for parameter settings.
Output data can be selected freely according to the user's needs.
The basic function of tightening

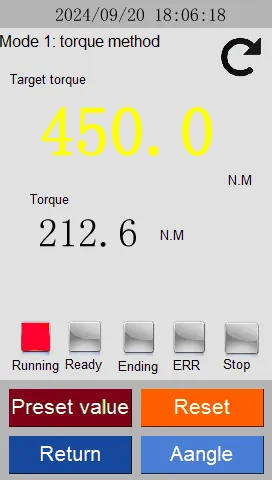

Tightening control methods: Torque, Angle.
Monitoring: Torque, Angle, Time, Current.
Tightening Steps: multiple processes can be selected.
Support the fast setting of initial tightening and final tightening.
Tightening Parameters: 10 groups or more.
Basic The basic function of data

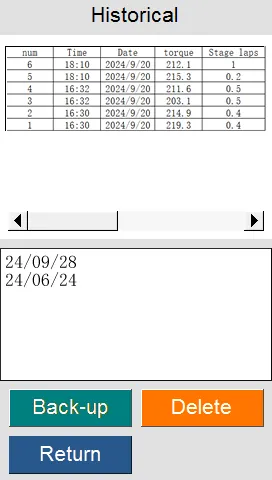

Data saving/reading/printing (optional).
Support standard MODBUS, PROFIBUS, etc.
Support wireless transmission, and connection to the host computer systems and MES management systems via IoT - optional.
Support USB connection to the memory card for data backup.
Support torque range of 10-300Nm, where it is suitable for high precision assembly conditions.
Support barring and valve application, with automatically recorded coil number and reverse torque control can be selected.
|
|
|
Image Gallery
Dimensions
| A | 344mm | 344mm | 353mm | 353mm | 362mm | 362mm | 362mm | 362mm |
| B | 62mm | 62mm | 62mm | 62mm | 62mm | 62mm | 62mm | 62mm |
| C | 67mm | 67mm | 72mm | 72mm | 72mm | 72mm | 72mm | 72mm |
| D | 208mm | 208mm | 213mm | 213mm | 213mm | 213mm | 213mm | 213mm |
Details
Series Comparison
| Material Code | Model | Torque Range (Nm) | Driving Square | Speed (RPM) | Weight (Kg) | Noise |
|---|---|---|---|---|---|---|
| 341017 | SAT-A50-TC | 10-50 | 0.75" | 180 | 4.3 | 80dB |
| 341018 | SAT-A60-TC | 12-60 | 0.75" | 151 | 4.3 | 80dB |
| 341019 | SAT-A80-TC | 20-80 | 0.75" | 113 | 4.7 | 80dB |
| 341020 | SAT-A100-TC | 20-100 | 0.75" | 90 | 4.7 | 80dB |
| 341021 | SAT-A120-TC | 25-120 | 0.75" | 75 | 4.8 | 80dB |
| 341022 | SAT-A150-TC | 30-150 | 0.75" | 42.9 | 4.9 | 80dB |
| 341023 | SAT-A200-TC | 40-200 | 0.75" | 35.7 | 4.9 | 80dB |
| 341024 | SAT-A300-TC | 60-300 | 0.75" | 21.5 | 5 | 80dB |
ps:If there are minor adjustments for some models,please refer to the factory parameters.
