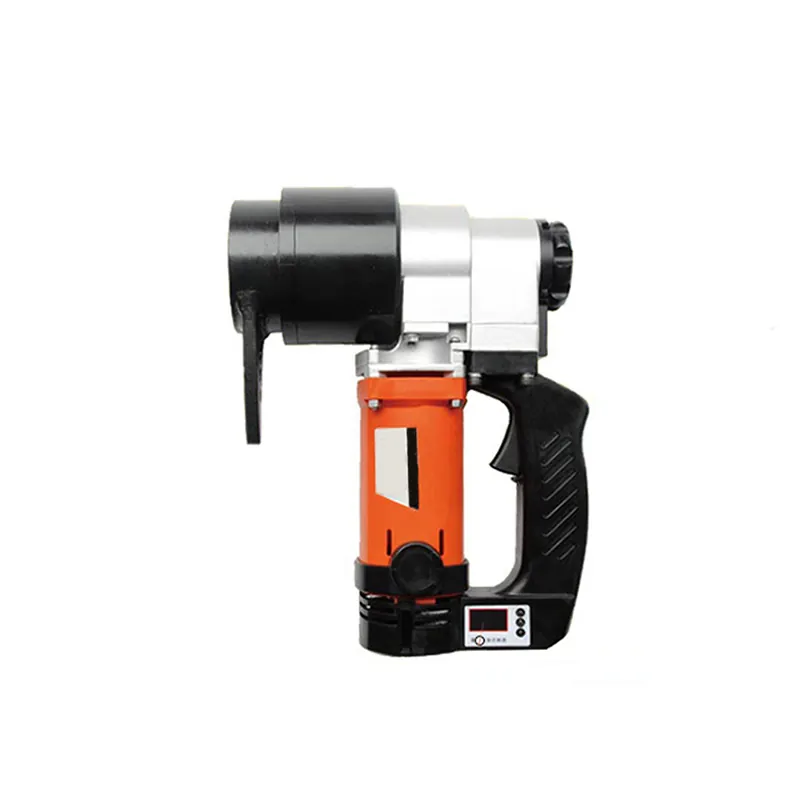

2000 Nm,M27-M30,Pistol Digital Electric Torque Wrench
-
Bolt Type M27-M30 Current 6/6.5A Customized support OEM,ODM Max. Power 1300W Max. Torque 2000Nm Model Number ZSW-2000,ZSW-2000DJ Other characteristics pistol, digital, for heavy-duty applications Place of Origin Ningbo,ZheJiang Rated Voltage 220V 50Hz Ro Speed(r/min) 7 Weight 7.5/10kg - Battery Powered Brushless Torque Wrench SCW-A Series SCW-14A , 338-1350Nm, 0.75/1 inch Battery Powered Brushless Torque Wrench SCW-30A , 700-3000Nm, 1 inch Battery Powered Brushless Torque Wrench SCW-20A , 525-2000Nm, 1 inch Battery Powered Brushless Torque Wrench SCW-3A , 100-300Nm, 0.75 inch Battery Powered Brushless Torque Wrench SCW-40A , 1000-4000Nm, 1 /1.5 inch Battery Powered Brushless Torque Wrench SCW-60A , 1500-6000Nm,1.5 inch Battery Powered Brushless Torque Wrench SCW-5A , 150-500Nm, 0.75 inch Battery Powered Brushless Torque Wrench SCW-80A , 2000-8000Nm,1.5 inch Battery Powered Brushless Torque Wrench SCW-7A , 200-700Nm, 0.75 inch Battery Powered Brushless Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
Model Number:ZSW-2000,ZSW-2000DJ
Current: 6/6.5A
Weight: 7.5/10kg
Max. power: 1300W
Max. Torque:2000Nm
Bolt Type: M27-M30
Ro Speed(r/min):7
Rated Voltage:220V 50Hz
Place of Origin:Ningbo,ZheJiang
Customized support:OEM,ODM
Other characteristics: pistol, digital, for heavy-duty applications
1. Ultra compact socket with an integrated reaction arm.
2. Shortest profile and compact socket make accessible to bolts at any narrow space.
3. Perfect solution for your work at narrow space .
4. Easily set your target torque with dial on the controller.
5. Available with both directions -- forward and reverse.
6. Easy switch directions Appling reaction arm to closest object, Tighten up to target torque.
7. Versatile Performance of our electric Torque Wrench for bridge construction, steel fabrication and any kind of heavy industry.
ZSW-2000 Digital Fixed Torque Electric Wrench
ZSW-2000DJ Digital Fixed Torque Electric Wrench
Fixed torque electric wrench, also known as torque wrench, is an electric wrench.
Its main feature is that the torque can be set and the torque can be adjusted.
It is mainly used in the steel structure installation industry and specializes
in the installation of high-strength bolts in steel structures.
High-strength bolts are used to connect steel structure joints,
usually in the form of bolt groups.
Electric Torque Wrench suitable for industrial and plant applications,
including wind power, shipbuilding, and pipe flange connecting.

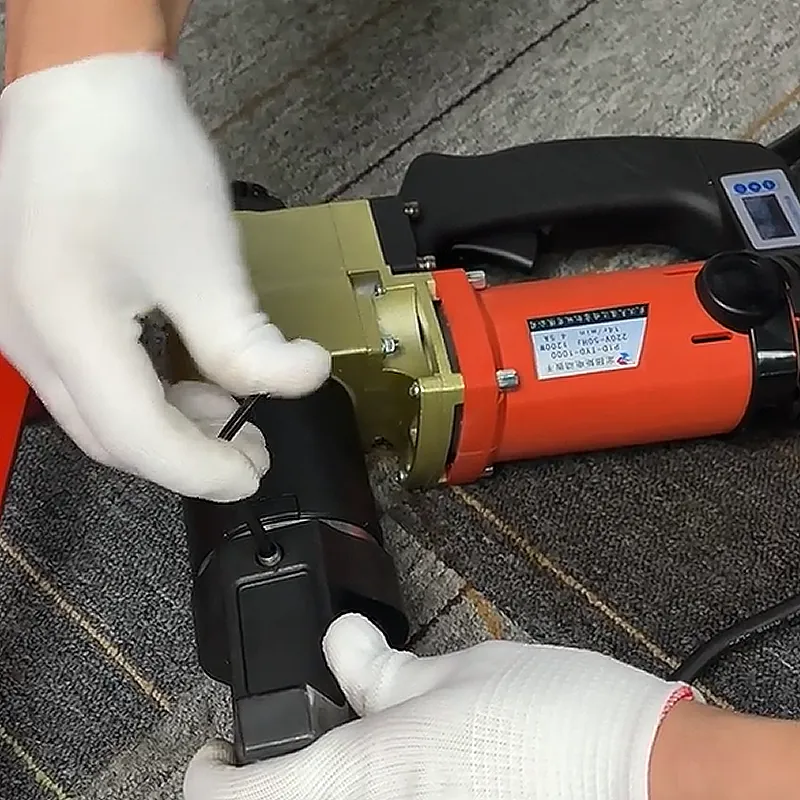

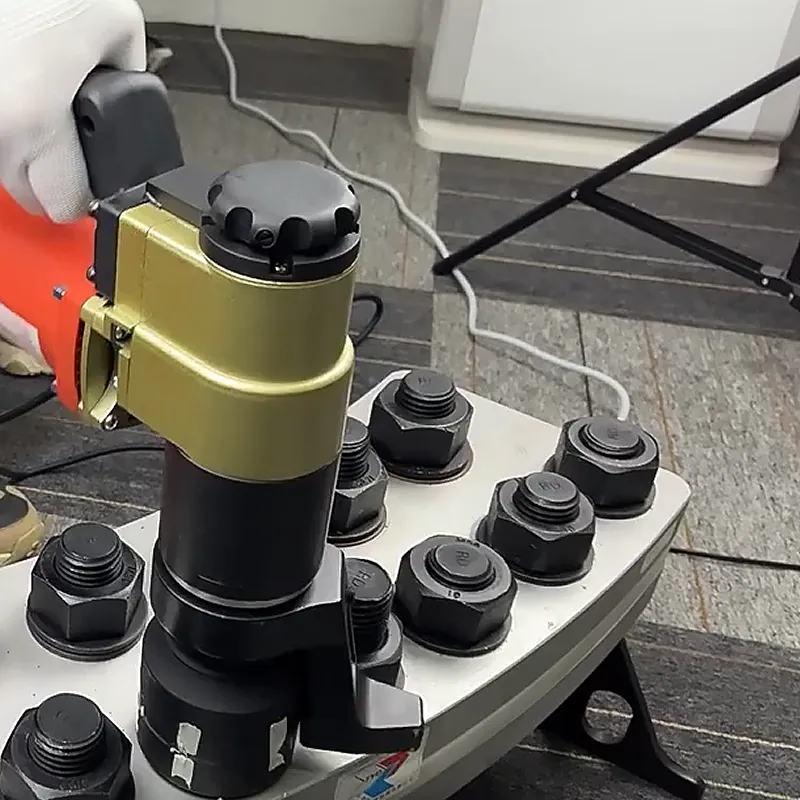

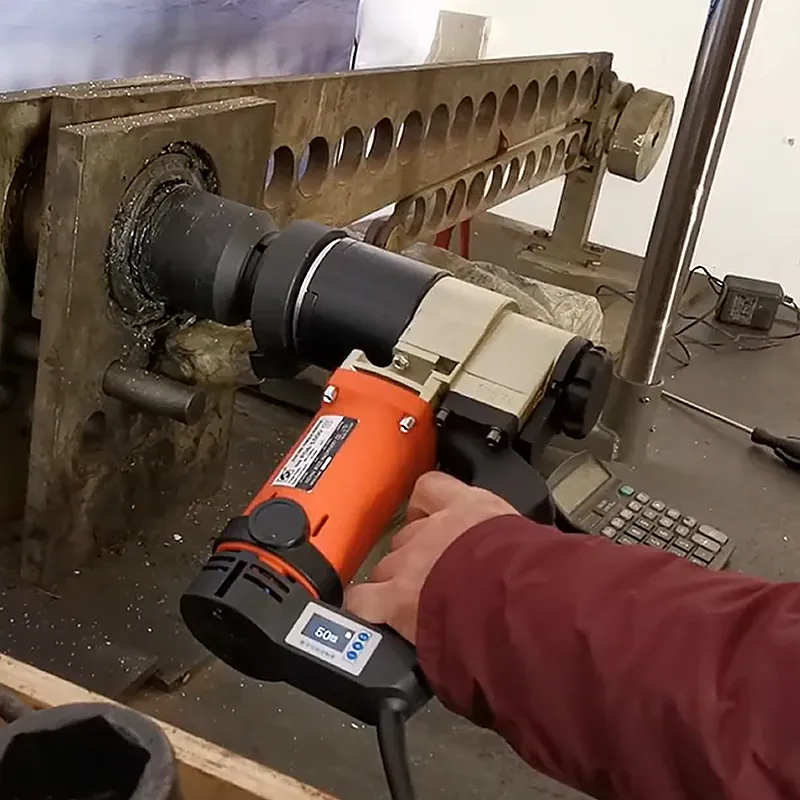

Image Gallery
Dimensions
ZSW-2000 Digital Fixed Torque Electric Wrench
ZSW-2000DJ Digital Fixed Torque Electric Wrench
| Digital Display Fixed Torque Electric Wrench | |||||||
| Model Number | Rated Voltage | Max. Torque | Max. Current | Max. Power | Ro Speed | Weight | Bolt Type |
| Nm | A | W | r/min | kg | |||
| ZSW-2000 | 220V 50Hz | 2000 | 6.5 | 1300 | 7 | 10 | M27-M30 |
| ZSW-2000DJ | 220V 50Hz | 2000 | 6 | 1300 | 7 | 7.5 | M27-M30 |
| Digital Display Fixed Torque Electric Wrench | |||||||
| Model Number | Rated Voltage | Max. Torque | Max. Current | Max. Power | Ro Speed | Weight | Bolt Type |
| Nm | A | W | r/min | kg | |||
| ZSW-600 | 220V 50Hz | 600 | 4 | 1200 | 16 | 6 | M16-M22 |
| ZSW-1000 | 220V 50Hz | 1000 | 4.5 | 1200 | 14 | 6 | M20-M24 |
| ZSW-1500 | 220V 50Hz | 1500 | 5.5 | 1300 | 10 | 7 | M24-M27 |
| ZSW-1500DJ | 220V 50Hz | 1500 | 5.5 | 1300 | 10 | 7 | M24-M27 |
| ZSW-2000 | 220V 50Hz | 2000 | 6.5 | 1300 | 7 | 10 | M27-M30 |
| ZSW-2000DJ | 220V 50Hz | 2000 | 6 | 1300 | 7 | 7.5 | M27-M30 |
| ZSW-2500 | 220V 50Hz | 2500 | 6.5 | 1500 | 5 | 10 | M30-M33 |
| ZSW-3500 | 220V 50Hz | 3500 | 6.5 | 1500 | 3 | 13 | M36 |
| ZSW-5000 | 220V 50Hz | 5000 | 7.5 | 1600 | 1 | 16 | M45 |
| ZSW-10000 | 220V 50Hz | 10000 | 7.5 | 1700 | 0.5 | 19 | M60 |
Details
Video
Literature
- 1.Working principle of manual torque wrenches
- 2.Considerations when buying hydraulic torque wrenches
- 3.hydraulic torque wrench pressure relief methods and maintenance precautions
- 4.Basic knowledge of dial torque wrench
- 5.Essential Factors to Consider When Choosing a Manual Torque Wrench
- 6.Advantages of Electric Torque Wrenches
FAQs
1. Are digital torque wrenches more accurate?
Yes, digital torque wrenches are often more accurate as they provide precise torque settings and digital readouts.
2. Is there a digital torque wrench?
Yes, digital torque wrenches are available. They are an advanced type of torque
wrench that provides a digital readout of the torque measurement.
3. Is it worth buying a digital torque wrench?
Whether it's worth buying a digital torque wrench depends on your needs.
If you require high accuracy and ease of use, a digital torque wrench can be a good investment.
4. What is the difference between a digital and traditional torque wrench?
The main difference is how torque is measured and displayed.
Traditional torque wrenches use mechanical means, like a dial or click mechanism.
Digital torque wrenches use electronic sensors and display the torque value on a digital screen.
