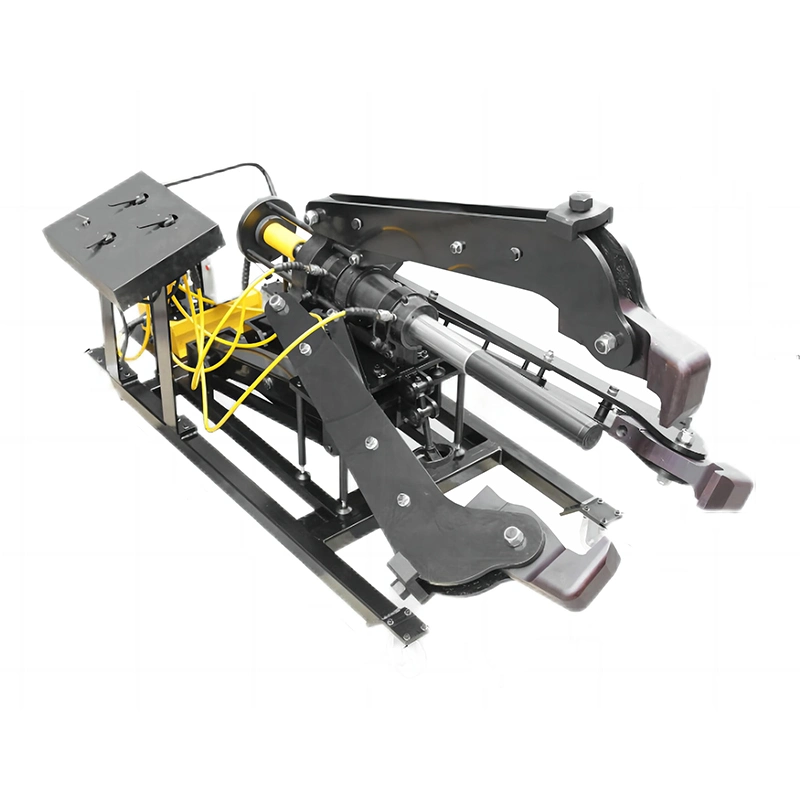

PH,2 Jaws 3 Jaws,100 200 Ton, Hydraulic Heavy Duty Puller
-
Brand Name Replacement Enerpac's PH Capacity 933-1861 kN Country of Origin China Manufacturer SAIVS Maximum Operating Pressure 700 bar/10000 PSI Minimum Order 1 Piece Model PH Number Of Jaws 2/3 Reach 803-880 mm Spread 140-1580 mm Stroke 300 mm Weight 1.1-1.6 kg - BHP1752 14 Ton Hydraulic Master Puller Set with Hand Pump BHP5751G 50 Ton Hydraulic Master Puller Set with Hand Pump BHP3751G 30 Ton Hydraulic Master Puller Set with Hand Pump BHP2751G 20 Ton Hydraulic Master Puller Set with Hand Pump LGHS310H 10 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump LGHS324H 24 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump LGHS314H 14 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump LGHS364H 64 Ton 3-Jaw Hydraulic Lock-Grip Puller Set with Hand Pump AMP Series,100-600 Ton,Hydraulic Heavy Duty Puller PH1002,100 Ton 250 mm,2 Jaws Hydraulic Heavy Duty Puller
Description
Model:PH
Product Line: Industrial Tools
Customizable with special requirement
Hydraulic lifting system.
Flow metering system provides constant lowering speed.
Double Acting Hydraulic System for holding, opening & closing jaws provides safe
and secure grip at all times.
Self Centring design keeps puller jaws clamped evenly on the work piece.
Easy jaw head adjusting system prevents puller jaws from sliding.
Puller can be assembled in 2 or 3 jaw configuration
Castors provide easy cart movement.
Includes 230V Electric Pump.
Special reminder: due to the design update, different batches of product panel layout is
different, mainly telescopic cylinder on the left and right side of the display of different actions,
as long as in accordance with the panel Logo can be operated.
Image Gallery
Details
Series Comparison
| Model | Model | Capacity Tonnes (KN) | Stroke (mm) | Max Spread (mm) | Min Reach (mm) | Min Spread (mm) | Max Reach (mm) | Min Central Height (mm) | Max Central Height (mm) | Weight (T) |
| Two-jaw | 100 T | 933 | 300 | 1535 | 880 | 150 | 1035 | 855 | 1490 | 1.1 |
| Two-jaw | 200 T | 1861 | 300 | 1580 | 803 | 140 | 955 | 855 | 1490 | 1.25 |
| Three-jaw | 100 T | 933 | 300 | 1535 | 880 | 150 | 1035 | 855 | 1490 | 1.4 |
| Three-jaw | 200 T | 1861 | 300 | 1580 | 803 | 140 | 955 | 855 | 1490 | 1.6 |
