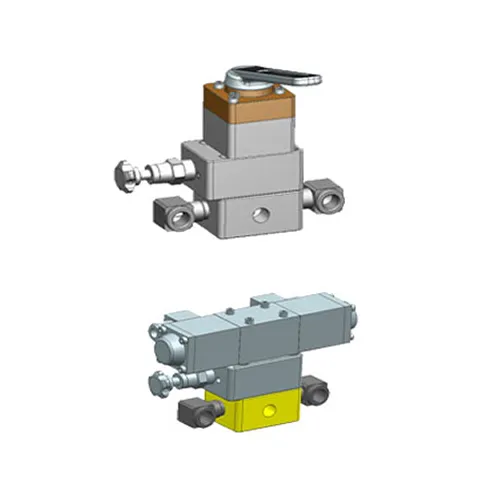

VC VEC Series Remote Directional Control Valves
-
Application Oil & gas Utilities Automotive repair maintenance Education & research Flow Capacity 15 L/min Max.Operating Pressure 700bar Other Parameters VEC=Remote Solenoid Directional Control Valve Series (Solenoid Provide Voltage: DC240V) VM Series Handle Reversing Valve Type: 20,4,3,15 VE Series Solenoid Directional Valve Type: A、B、C、D、E、F、G、P - HAWE Radial Piston Pump Type R & RG Series VM Series Pump Mounted Directional Control Valves VE Series Pump Mounted Directional Control Valves VM VE Series Pump Mounted Directional Control Valves HAWE Radial Piston Pump Element PE Series HAWE Radial Piston Pump Element MPE 4/5/6/7/8/9 HAWE Directional Seated Valve Type G & WG Series High Pressure Hydraulic Hoses Hydraulic Gauge Adapters Gauge Accessories Quick Couplers
Description
Flow Capacity: 15 L/min
Max.Operating Pressure: 700bar
Advance/Retract and Advance / Hold / Retract remote operation of Single-Acting and Double-Acting cylinders and tools.
Manual or solenoid operation.

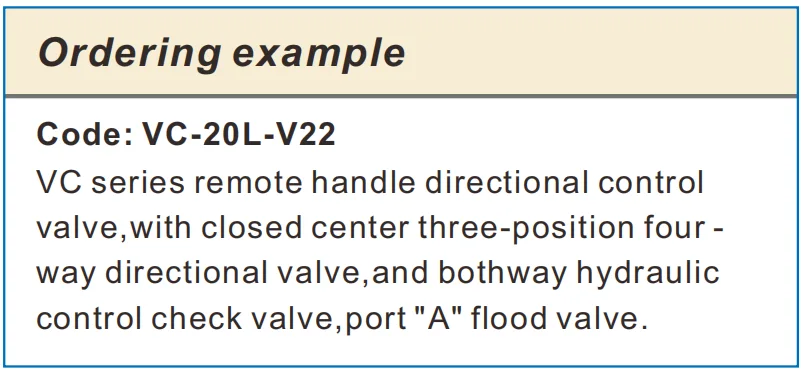

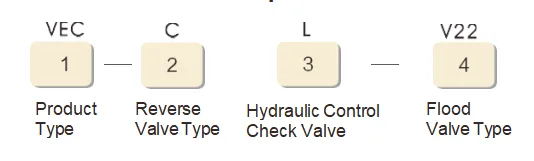

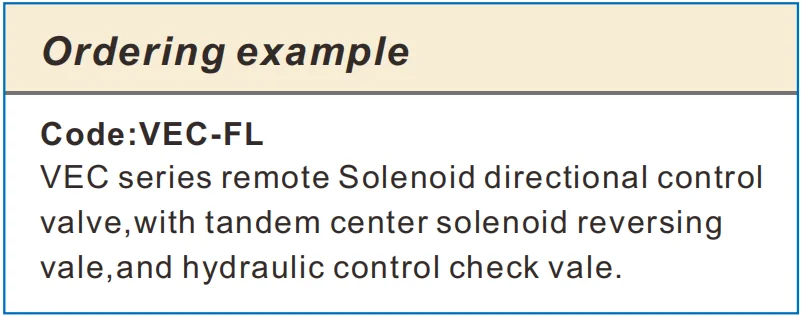

This is how a Remote Directional Control Valve model is built up
Product Type
VC= Remote Control by Handle Reverse Control Valve Series
VEC=Remote Solenoid Directional Control Valve Series (Solenoid Provide Voltage:DC240V)
Reverse Valve Type
VM Series Handle Reversing Valve Type: 20,4,3,15
VE Series Solenoid Directional Valve Type: A、B、C、D、E、F、G、P
Hydraulic Control Check Valve
L=V13(Hydraulic Control Check Valve)
Flood Valve Type
V22: Port "A" stacked flood valve
V23:Port "A"+"B" stacked flood valve
V24: Port"P"+"A" stacked flood valve
V25: Port"P" stacked flood valve
