Description
Product Line: Industrial Tools
Customizable with special requirement
SAIVS's SBT series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s DSX &RSL series,
HYTORC’s MXT & EDGE S series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, and other wrenches in terms of function, quality, and applicable working conditions.
SAIVS offers a one-year warranty, better prices, and Customized services for special conditions.
Welcome to Get Latest Price now

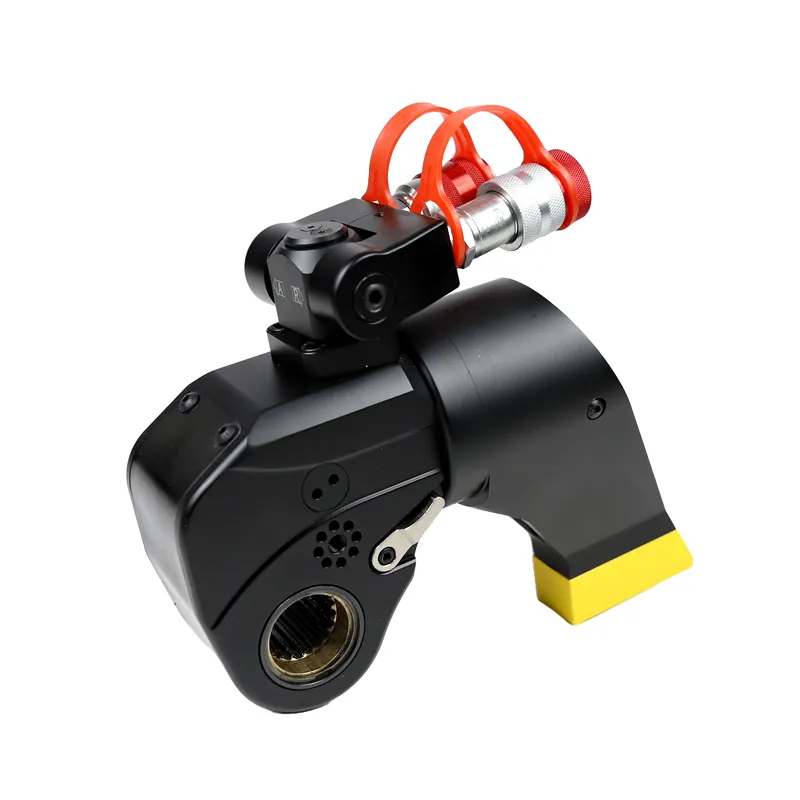

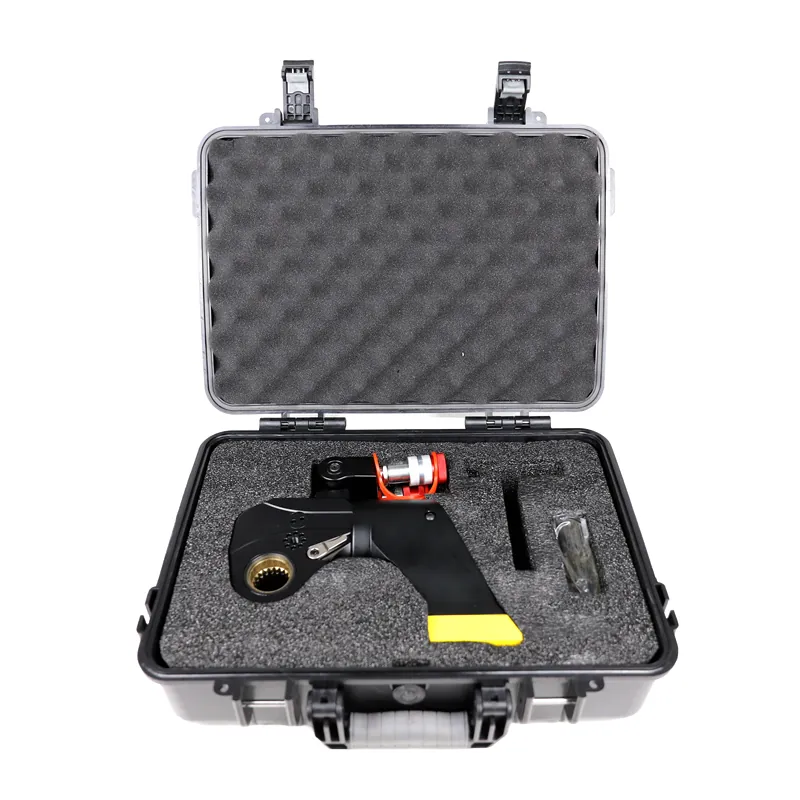

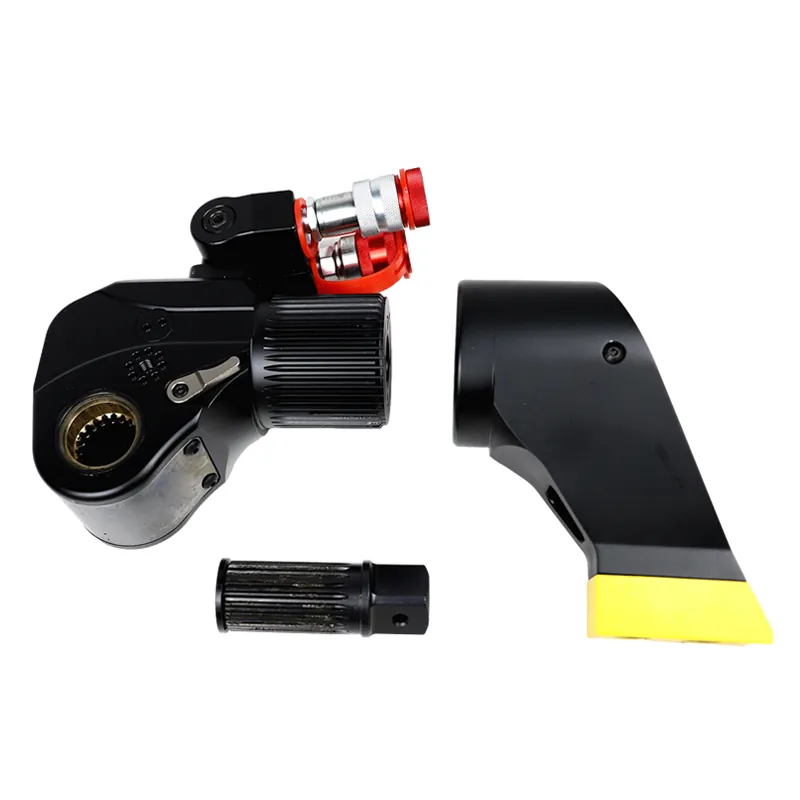

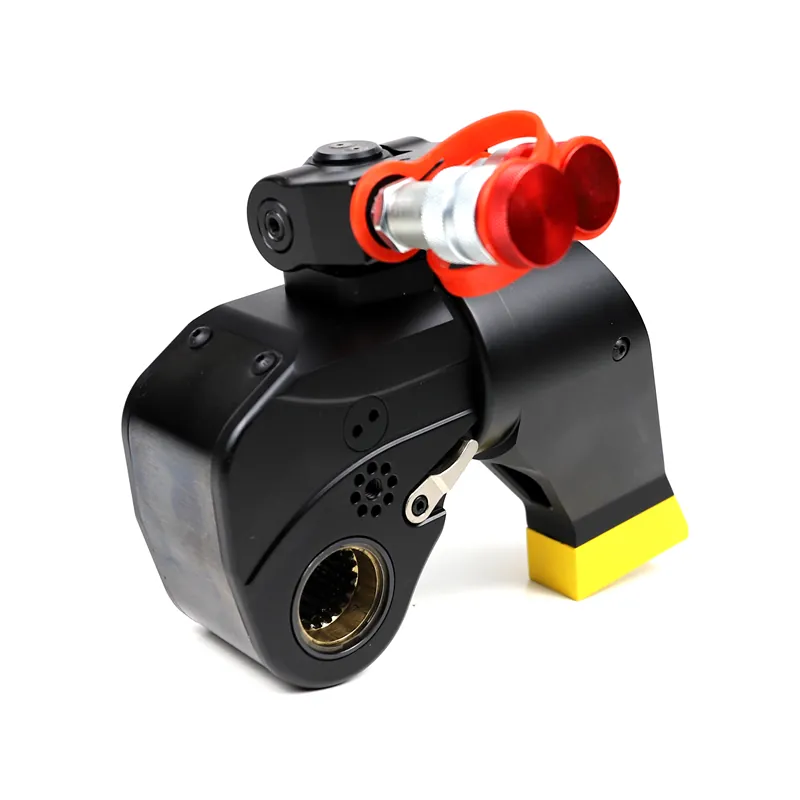

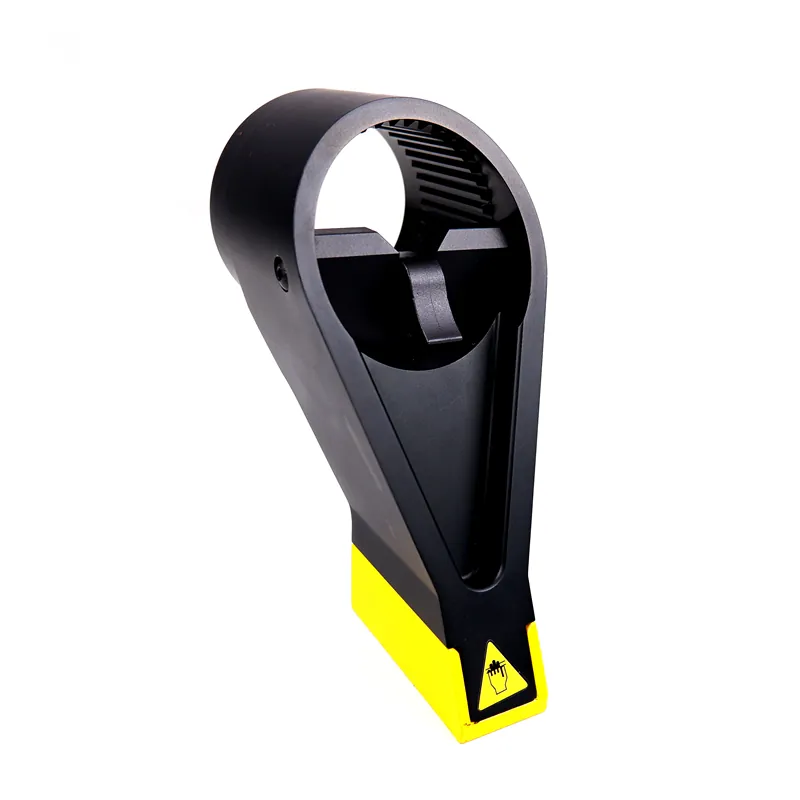

Image Gallery
Dimensions
Model | 07SBT | 1SBT | 3SBT | 5SBT | 8SBT | 10SBT | 15SBT | 20SBT | 25SBT | 35SBT | 50SBT | |
Torque（N.m ） | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2063-20627 | 2666-26664 | 3472-34725 | 4866-48666 | 7200-72000 | |
Bolt size （M ） | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 | |
Weight （Kg） | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 21 | 25 | 31 | 45 | 87 | |
L1 |
| 110.8 | 133.5 | 169 | 202.5 | 216 | 237.5 | 285 | 299.5 | 313 | 361.5 | 400 |
L2 | 139.3 | 185.5 | 242 | 271 | 309 | 340.5 | 395 | 466.5 | 461 | 496.5 | 516 | |
H1 | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 | |
H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 178 | 183 | 200 | 216 | 223 | |
H3 |
| 76.2 | 95.5 | 127 | 149 | 167 | 182 | 200 | 220 | 247 | 282 | 291 |
H4 | 108.1 | 131 | 176.5 | 199 | 216.5 | 231.5 | 250 | 269.5 | 296.5 | 331.5 | 341 | |
R1 |
| 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 66 | 77 | 81 |
R2 | 68.3 | 99 | 134 | 137 | 171 | 174 | 222 | 250.5 | 250.5 | 271 | 259 | |
Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | |

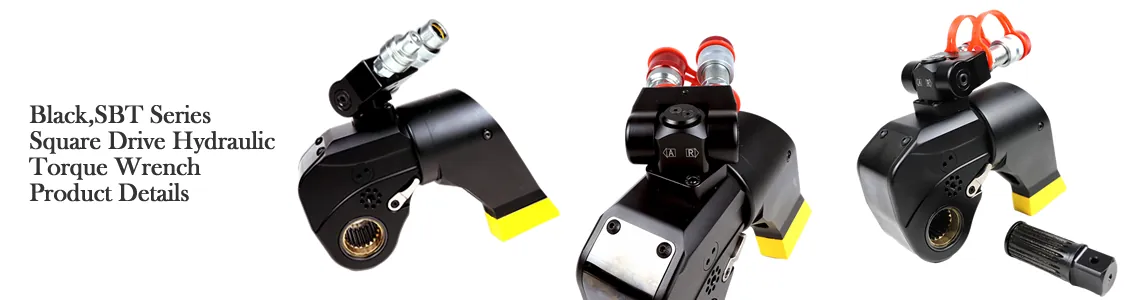

Details
Impact Socket Specification
| 3/4" Suqare Drive (07SBT,1SBT) | 1" Suqare Drive (3SBT) | |||||||||||||
| Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | |
| mm | mm | mm | mm | |||||||||||
| SD01001 | M16 | 24 | 54 | 32 | 40 | 40 | SD02001 | M20 | 30 | 59 | 32 | 54 | 54 | |
| SD01002 | M18 | 27 | 54 | 32 | 42 | 42 | SD02002 | M22 | 34 | 59 | 32 | 58 | 58 | |
| SD01003 | M20 | 30 | 54 | 33 | 46 | 44 | SD02003 | M24 | 36 | 62 | 32 | 59 | 59 | |
| SD01004 | M22 | 34 | 54 | 32 | 48 | 44 | SD02004 | M27 | 41 | 65 | 38 | 67 | 54 | |
| SD01005 | M24 | 36 | 57 | 32 | 53 | 44 | SD02005 | M30 | 46 | 65 | 38 | 74 | 54 | |
| SD01006 | M27 | 41 | 58 | 33 | 60 | 44 | SD02006 | M33 | 50 | 70 | 43 | 79 | 60 | |
| SD01007 | M30 | 46 | 63 | 38 | 66 | 44 | SD02007 | M36 | 55 | 80 | 52 | 84 | 60 | |
| SD01008 | M33 | 50 | 65 | 40 | 71 | 44 | SD02008 | M39 | 60 | 85 | 57 | 89 | 60 | |
| SD01009 | M36 | 55 | 70 | 45 | 77 | 54 | SD02009 | M42 | 65 | 85 | 58 | 98 | 70 | |
| SD02010 | M45 | 70 | 90 | 62 | 104 | 70 | ||||||||
| SD02011 | M48 | 75 | 95 | 65 | 108 | 70 | ||||||||
| 11/2" Suqare Drive (5SBT, 8SBT, 10SBT) | 21/2"Suqare Drive (15SBT, 20SBT, 25SBT,35SBT,50SBT) | |||||||||||||
| Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | |
| mm | mm | mm | mm | |||||||||||
| SD03002 | M27 | 41 | 85 | 44 | 74 | 74 | SD04003 | M42 | 65 | 100 | 52 | 119 | 119 | |
| SD03003 | M30 | 46 | 85 | 44 | 74 | 74 | SD04004 | M45 | 70 | 120 | 67 | 128 | 128 | |
| SD03004 | M33 | 50 | 90 | 45 | 79 | 79 | SD04005 | M48 | 75 | 120 | 67 | 128 | 128 | |
| SD03005 | M36 | 55 | 90 | 45 | 84 | 84 | SD04006 | M52 | 80 | 130 | 71 | 128 | 128 | |
| SD03006 | M39 | 60 | 100 | 45 | 94 | 94 | SD04007 | M56 | 85 | 130 | 71 | 129 | 129 | |
| SD03007 | M42 | 65 | 100 | 45 | 98 | 80 | SD04008 | M60 | 90 | 140 | 73 | 139 | 139 | |
| SD03008 | M45 | 70 | 105 | 50 | 104 | 80 | SD04009 | M64 | 95 | 140 | 73 | 139 | 139 | |
| SD03009 | M48 | 75 | 110 | 50 | 118 | 85 | SD04010 | M68 | 100 | 140 | 81 | 148 | 130 | |
| SD03010 | M52 | 80 | 115 | 55 | 118 | 90 | SD04011 | M72 | 105 | 150 | 89 | 149 | 130 | |
| SD03011 | M56 | 85 | 125 | 60 | 128 | 90 | SD04012 | M76 | 110 | 150 | 90 | 158 | 130 | |
| SD03012 | M60 | 90 | 125 | 60 | 139 | 90 | SD04013 | M80 | 115 | 150 | 98 | 168 | 130 | |
| SD03013 | M64 | 95 | 130 | 65 | 139 | 90 | SD04014 | M85 | 120 | 150 | 98 | 178 | 130 | |
| SD03014 | M68 | 100 | 135 | 70 | 144 | 90 | SD04015 | M90 | 130 | 170 | 98 | 188 | 130 | |
| SD03015 | M72 | 105 | 135 | 70 | 149 | 90 | SD04016 | M95 | 135 | 170 | 114 | 198 | 130 | |
| SD03016 | M76 | 110 | 135 | 70 | 158 | 90 | SD04017 | M100 | 145 | 170 | 122 | 210 | 152 | |
| SD03017 | M80 | 115 | 135 | 70 | 159 | 90 | SD04018 | M105 | 150 | 190 | 140 | 216 | 152 | |
| SD03018 | M85 | 120 | 135 | 70 | 168 | 95 | SD04019 | M110 | 155 | 190 | 140 | 229 | 152 | |
| SD03019 | M90 | 130 | 155 | 93 | 189 | 95 | SD04020 | M115 | 165 | 190 | 140 | 241 | 152 | |
Video
Literature
- 1.Choosing Customized Battery-Powered Brushless Torque Wrenches: Factors to Consider
- 2.How to Choose the Right Battery-Powered Brushless Torque Wrench for Your Needs
- 3.SAIVS Shipment Log NO.3: Send SHW series low profile hexagon hydraulic torque wrench
- 4.Important Specifications to Consider when Buying a Hydraulic Torque Wrench Pump
- 5.The Environmental Benefits of Battery-Powered Brushless Torque Wrenches
- 6.electric hydraulic torque wrench pumps are powerful tools that are perfect
FAQs
Q: What is the torque range of a hydraulic torque wrench?
A: The torque range of a hydraulic torque wrench can vary from a few newton-meters to several thousand newton-meters.
Q: How much does a hydraulic torque wrench cost?
A: The cost of a hydraulic torque wrench can range from a few hundred dollars to several thousand dollars.
Q: What are some applications of hydraulic torque wrenches?
A: Hydraulic torque wrenches are widely used in a variety of industries, including automotive, aerospace, construction, and machinery.
