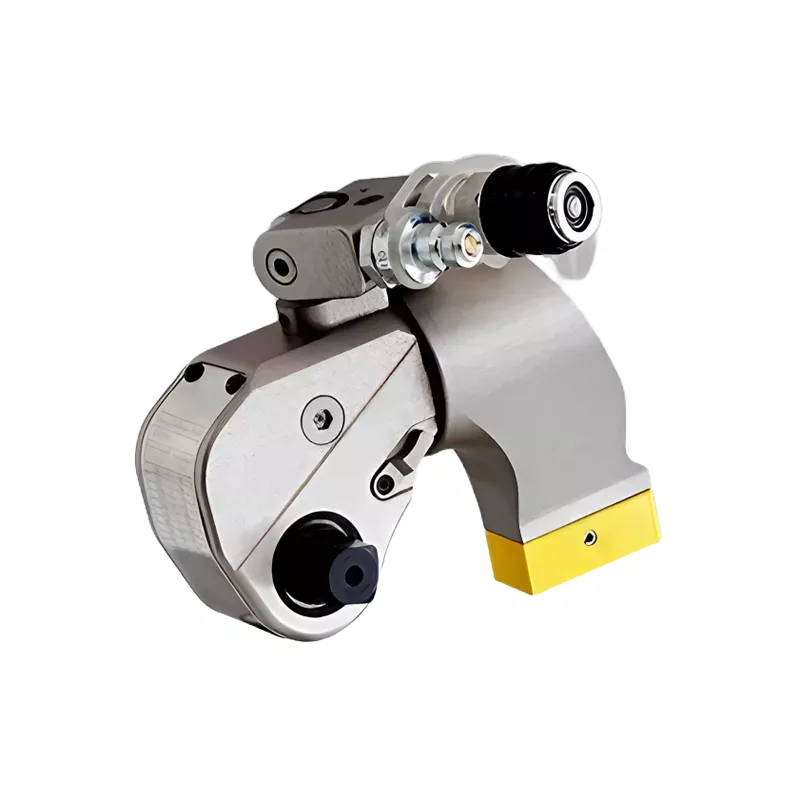

SBT Series Square Drive Hydraulic Torque Wrench
-
- Champagne,SBT Series Square Drive Hydraulic Torque Wrench Boost Efficiency and Versatility with Nut Runner Accessories, Side-Drive and STM Offset Link for Lon AVANTI 0.7-35, 153-43156 NM, Square Drive Hydraulic Torque Wrench SOW Series Low Profile Hydraulic Torque Wrenches Silver SOW Series Low Profile Hydraulic Torque Wrenches Black SHW Series, Hexagon Cassettes for Low Profile Hexagon Torque Wrenches Impact Sockets for Square Drive Hydraulic Torque Wrench Hand Torque Multiplier with Integrated Reaction Arm Black,SBT Series Square Drive Hydraulic Torque Wrench Red,SBT Series Square Drive Hydraulic Torque Wrench
Description
Product Line: Industrial Tools
Customizable with special requirement
SAIVS's SBT series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s DSX &RSL series,
HYTORC’s MXT & EDGE S series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, and other wrenches in terms of function, quality, and applicable working conditions.
SAIVS offers a one-year warranty, better prices, and Customized services for special conditions.
Welcome to Get Latest Price now
Model | 07SBT | 1SBT | 3SBT | 5SBT | 8SBT | 10SBT | 15SBT | 20SBT | 25SBT | 35SBT | 50SBT |
Torque (N.m ) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2063-20627 | 2666-26664 | 3472-34725 | 4866-48666 | 7200-72000 |
Bolt size(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 |
Weight(Kg) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 21 | 25 | 31 | 45 | 87 |
L1 | 110.8 | 133.5 | 169 | 202.5 | 216 | 237.5 | 285 | 299.5 | 313 | 361.5 | 400 |
L2 | 139.3 | 185.5 | 242 | 271 | 309 | 340.5 | 395 | 466.5 | 461 | 496.5 | 516 |
H1 | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 |
H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 178 | 183 | 200 | 216 | 223 |
H3 | 76.2 | 95.5 | 127 | 149 | 167 | 182 | 200 | 220 | 247 | 282 | 291 |
H4 | 108.1 | 131 | 176.5 | 199 | 216.5 | 231.5 | 250 | 269.5 | 296.5 | 331.5 | 341 |
R1 | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 66 | 77 | 81 |
R2 | 68.3 | 99 | 134 | 137 | 171 | 174 | 222 | 250.5 | 250.5 | 271 | 259 |
Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |

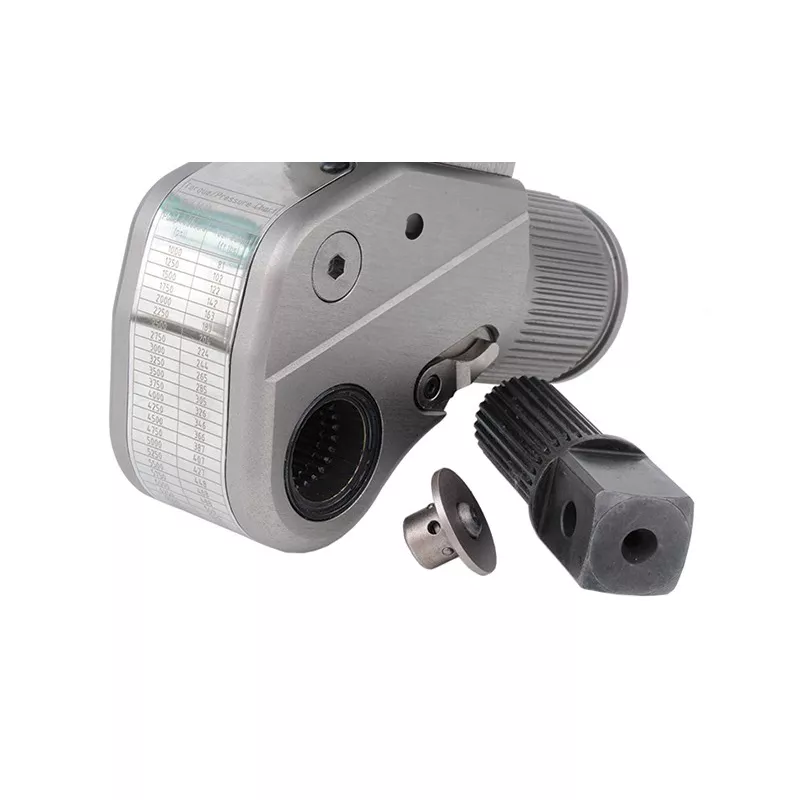

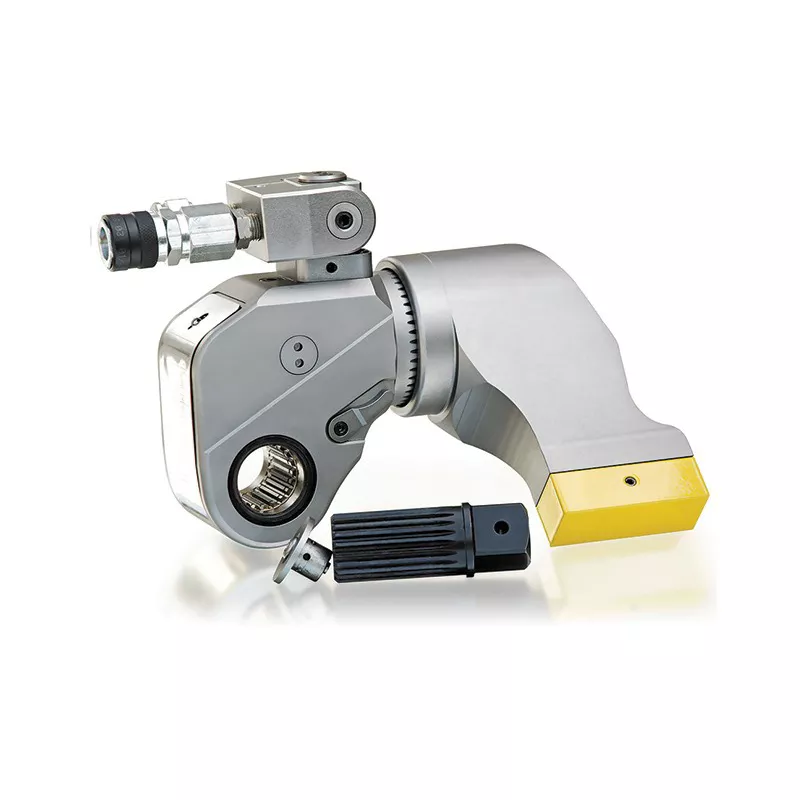

Image Gallery
Dimensions
Model | 07SBT | 1SBT | 3SBT | 5SBT | 8SBT | 10SBT | 15SBT | 20SBT | 25SBT | 35SBT | 50SBT | |
Torque（N.m ） | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2063-20627 | 2666-26664 | 3472-34725 | 4866-48666 | 7200-72000 | |
Bolt size （M ） | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 | |
Weight （Kg） | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 21 | 25 | 31 | 45 | 87 | |
L1 |
| 110.8 | 133.5 | 169 | 202.5 | 216 | 237.5 | 285 | 299.5 | 313 | 361.5 | 400 |
L2 | 139.3 | 185.5 | 242 | 271 | 309 | 340.5 | 395 | 466.5 | 461 | 496.5 | 516 | |
H1 | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 | |
H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 178 | 183 | 200 | 216 | 223 | |
H3 |
| 76.2 | 95.5 | 127 | 149 | 167 | 182 | 200 | 220 | 247 | 282 | 291 |
H4 | 108.1 | 131 | 176.5 | 199 | 216.5 | 231.5 | 250 | 269.5 | 296.5 | 331.5 | 341 | |
R1 |
| 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 66 | 77 | 81 |
R2 | 68.3 | 99 | 134 | 137 | 171 | 174 | 222 | 250.5 | 250.5 | 271 | 259 | |
Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | |
