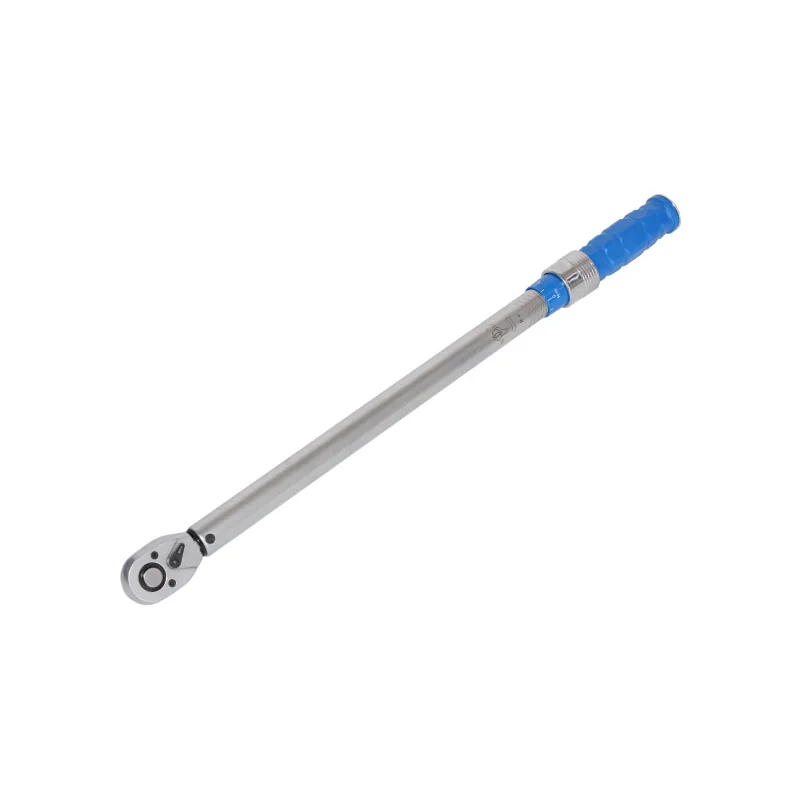

1/2,3/4 Inch Preset Torque Wrench,DP Series
-
Accuracy ±4% Brand SAIVS Customized OEM,ODM Driver(inch) 3/8，1/2，3/4 ,1/4 L/W/H(mm) 230-675/28-45/28-38 Minimum Order 1Piece Model Number DP Place of Origin China Torque range(Nm) 1-500Nm Weight(kg) 0.38-2.01 - 150-500Nm,Pneumatic Torque Wrench,SFW5A 1800-6000Nm,Pneumatic Torque Wrench,SFW60A 240-800Nm,Pneumatic Torque Wrench,SFW8A 2400-8000Nm,Pneumatic Torque Wrench,SFW80A 3000-10000Nm,Pneumatic Torque Wrench,SFW100A 3600-12000Nm,Pneumatic Torque Wrench,SFW120A 405-1350 Nm,Pneumatic Torque Wrench,SFW14A 600-2000Nm,Pneumatic Torque Wrench,SFW20A 80-300Nm,Pneumatic Torque Wrench,SFW3A Pneumatic Torque Wrench SFW-A Series
Description
The Torque Wrench body is made of metal structure, sturdy and durable, with a long service life.
Accuracy: The torque error value is ± 4%.
The ratchet head material is made of chrome vanadium alloy steel, which is sturdy and durable.
It can be easily reversed through reversing paddles
and is equipped with a quick release button, making single hand operation convenient and efficient.
The plastic handle of the wrench is made of imported materials,
which has the characteristics of oil resistance, anti slip, anti drop, and durability.
The permanent torque scale on the alloy steel pipe
is easy for users to read and can be compared in metric and English systems.
Each torque wrench has a unique product identification code.
Image Gallery
Dimensions
| DP type preset torque wrench | |||||||||
| Model Number | Torque range | Driver/inch | Fine Scale/N.m | Length/mm | Width/mm | Height/mm | Weight/Kg | ||
| N.m | Lbf.ft | N.m | Lbf.ft | ||||||
| DP19601 | 1-5 | 2-9 | 1/4" | 0.05 | 0.067 | 230 | 28 | 28 | 0.38 |
| DP19602 | 2-12 | 2-9 | 1/4"、 3/8" | 0.1 | 0.074 | 230 | 34 | 30 | 0.5 |
| DP19603 | 4-20 | 3-15 | 1/4"、 3/8" | 0.2 | 0.147 | 230 | 34 | 30 | 0.55 |
| DP19604 | 5-25 | 4-19 | 1/4"、 3/8" | 0.2 | 0.147 | 230 | 34 | 30 | 0.55 |
| DP19605 | 6-30 | 5-23 | 3/8" | 0.2 | 0.147 | 290 | 34 | 30 | 0.58 |
| DP19606 | 10-60 | 9-46 | 3/8"、 1/2" | 0.5 | 0.369 | 290 | 41 | 34 | 0.98 |
| DP19607 | 10-100 | 7-75 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1 |
| DP19608 | 20-100 | 15-75 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1 |
| DP19609 | 25-125 | 20-94 | 1/2" | 0.5 | 0.369 | 410 | 41 | 34 | 1 |
| DP19610 | 40-200 | 30-150 | 1/2" | 1.0 | 0.738 | 470 | 41 | 34 | 1.06 |
| DP19611 | 20-210 | 15-155 | 1/2" | 1.0 | 0.738 | 470 | 41 | 34 | 1.06 |
| DP19612 | 60-300 | 45-226 | 3/4" | 1.0 | 0.738 | 625 | 45 | 38 | 1.99 |
| DP19613 | 65-335 | 50-250 | 3/4" | 1.0 | 0.738 | 625 | 45 | 38 | 1.99 |
| DP19614 | 65-350 | 50-260 | 3/4" | 1.0 | 0.738 | 625 | 45 | 38 | 1.99 |
| DP19615 | 80-400 | 60-300 | 3/4" | 2.0 | 1.475 | 675 | 45 | 38 | 2.01 |
| DP19616 | 100-500 | 80-376 | 3/4" | 2.0 | 1.475 | 675 | 45 | 38 | 2.01 |
Details
Application
Installing plumbing fixtures
Attaching roof trusses
Building scaffolding structures
Installing pipeline components
Heavy equipment maintenance
Medical device assembly
Calibration of other tools
Video
Literature
- 1.Working principle of manual torque wrenches
- 2.Repair Methods For Digital Torque Wrench
- 3.How Often Should I Calibrate My Torque Wrench
- 4.Types of Manual Torque Wrenches
- 5.Precautions for using preset torque wrenches
- 6.Basic knowledge of dial torque wrench
FAQs
How do you use a preset torque wrench?
To use a preset torque wrench, first determine the correct torque value and adjust
the wrench to the desired value by turning the handle or knob until the scale aligns
with the required torque setting. Then, attach the appropriate socket or bit to the
wrench and tighten the fastener until you hear or feel a click, indicating that the
pre-set torque has been reached. If multiple fasteners need to be tightened to the
same torque value, ensure that the wrench is reset to the appropriate setting before each use.
What is a preset type torque wrench?
A preset type torque wrench is a specialized tool designed to apply a specific amount of torque to a fastener.
Unlike adjustable torque wrenches that allow users to set different torque values, a preset torque
wrench comes with a fixed torque setting determined by the manufacturer. These wrenches are commonly
used in assembly lines or situations where consistent and precise torque application is required.
