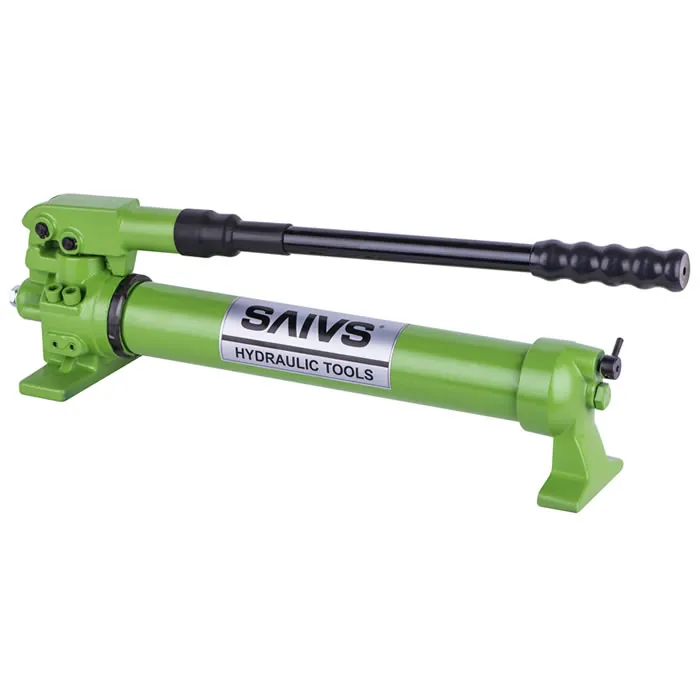

Two Speed,10000 PSI,Steel Hydraulic Hand Pump
-
Max.Operating Pressure 700 Model SPS7-2D Pressure Rating 1st Stage 25bar/362.6 psi Pressure Rating 2nd Stage 700bar/10000 psi Pump Type Double Speed Usable Oil Capacity 2200cm³ Used with Cylinder Double-Acting Weight 8(kg) - HP1000DMIN, Two Speed 67.7 in³ Usable Oil,Hydraulic Sealed Hand Pump P142, Two Speed, Lightweight Hydraulic Hand Pump HP1000SMIN, Two Speed 67.7 in³ Usable Oil,Hydraulic Sealed Hand Pump HP350SMIN, Two Speed 18.3 in³ Usable Oil,Hydraulic Sealed Hand Pump HP350DMIN, Two Speed 18.3 in³ Usable Oil,Hydraulic Sealed Hand Pump HP550SMIN, Two Speed 35.4 in³ Usable Oil,Hydraulic Sealed Hand Pump HP550DMIN, Two Speed 35.4 in³ Usable Oil,Hydraulic Sealed Hand Pump P392, Two Speed, Lightweight Hydraulic Hand Pump Single Speed,10000 PSI,Steel Hydraulic Hand Pump Single,Two Speed,10000 PSI,Lightweight Hydraulic Hand Pump
Description
Product Line: Industrial Tools
Customizable with special requirement
Model:SPS7-2D
Pump Type:Double Speed
Used with Cylinder:Double-Acting
Usable Oil Capacity: 2200cm³
Max.Operating Pressure: 700
Pressure Rating 1st Stage: 25bar/362.6 psi
Pressure Rating 2nd Stage:700bar/10000 psi
Oil Displacement Per Stroke 1st Stage (cm³)16
Oil Displacement Per Stroke 2nd Stage (cm³)2.5
Weight:8(kg)
1. Durable Stainless Steel structure
2. Two-speed operation, build-in automatic pressure valve to provide greater flow at low pressure,
saving operation time and increasing the work efficiency.
3. Build-in safety valve provides dual-protection of safety.
4. Pressure regulating valve can readjust working pressure.
5. The unique press rod mechanism for easy operating.
6. Integral three-position four-way valve on SPS7-2D for double-acting Hydraulic Cylinders.
Image Gallery
Dimensions
| Model Number | Pump Type | Used with Cylinder | Usable Oil Capacity | Pressure Rating (bar) | Output Oil Volume Each Stroke (cm3) | Handle Force | Output Adapter | Weight | ||
| (cm3) | 1st Stage | 2st Stage | 1st Stage | 2st Stage | (N) | Kg | ||||
| SPS7-2D | Double Speed | Double-Acting | 2200 | 25 | 700 | 16 | 2.5 | 300 | NPT3/8" | 8 |
| Over Dimension（mm) | Model Number | |||||||||||||||
| A | B | C | D | E | F | H | J | L | M | N | P | Q | R | S | T | |
| 425 | 539 | 25 | 44 | / | 64 | 527 | 29 | 174 | 19 | 146 | 121 | 38 | 43 | 8 | 67 | SPS7-2D |
Details
Video
Literature
- 1.How to Troubleshoot Common Issues with Hydraulic Torque Wrench Pumps
- 2.Battery Powered Brushless Torque Wrench for Precision Industrial Assembly
- 3.Precision in Power: How SAIVS Hydraulic Torque Wrenches Redefine Industrial Bolting Accuracy
- 4.How to Check and Maintain Drive Hydraulic Wrench Safely
- 5. Choosing the Right Tool: Hydraulic vs. Mechanical Flange Separators
- 6.Hydraulic Wrench Quality: Key Criteria for Purchasing Decisions
- 7.Essential Hydraulic Tools for Industrial Applications: Lifting Wedges, Spreaders, and Flange Spreade
FAQs
1. What is hydraulic hand pump used for?
A hydraulic hand pump is used to manually generate hydraulic pressure in a hydraulic system.
2. What is the maximum pressure of hydraulic hand pump?
The maximum pressure of a hydraulic hand pump varies depending on the specific model and design.
3. How does a 2 speed hydraulic hand pump work?
A two-speed hydraulic hand pump incorporates a dual-stage pumping mechanism,
allowing the user to switch between high-pressure and low-pressure modes.
4. What is the capacity of a hydraulic hand pump?
The capacity of a hydraulic hand pump refers to the amount of fluid it can displace
per stroke or revolution, and is usually expressed in terms of volume per unit of time.
