Plug-In Torque Wrench,9x12,14x18mm,DP-1 Series
-
Accuracy ±4% Brand SAIVS Customized OEM,ODM L/W/H(mm) 208-653/28-45/28-38 Minimum Order 1Piece Model Number DP-1 Place of Origin China Specification 9x12,14x18 Torque range(Nm) 1-500Nm Weight(kg) 0.4-1.89 - 150-500Nm,Pneumatic Torque Wrench,SFW5A 1800-6000Nm,Pneumatic Torque Wrench,SFW60A 240-800Nm,Pneumatic Torque Wrench,SFW8A 2400-8000Nm,Pneumatic Torque Wrench,SFW80A 3000-10000Nm,Pneumatic Torque Wrench,SFW100A 3600-12000Nm,Pneumatic Torque Wrench,SFW120A 405-1350 Nm,Pneumatic Torque Wrench,SFW14A 600-2000Nm,Pneumatic Torque Wrench,SFW20A 80-300Nm,Pneumatic Torque Wrench,SFW3A Pneumatic Torque Wrench SFW-A Series
Description
The Torque Wrench body is made of metal structure,
sturdy and durable, with a long service life.
Accuracy: Torque error value ± 4%.
The wrench's plastic handle is made of imported materials,
providing oil resistance, anti-slip, anti-drop, and durability.
The permanent torque scale on the alloy steel pipe is easy for users to read,
with a comparison between metric and English systems.
Interchangeable head design, includes 9x12
and 14x18 concave square heads for torque wrench interface.
Each torque wrench has a unique product identification code.

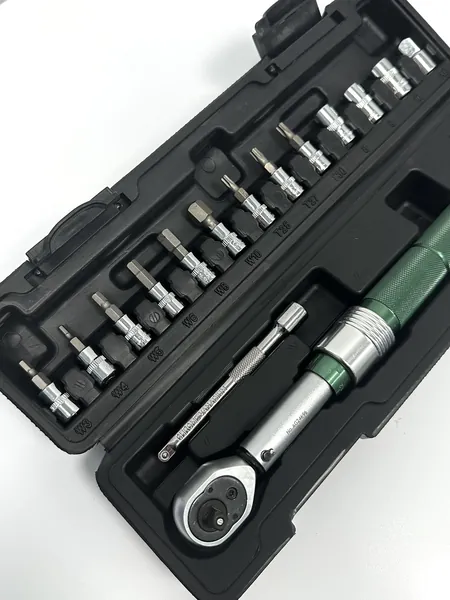

Image Gallery
Dimensions
| DP-1 Type Plug-in torque wrench | |||||||||
| Model Number | Torque range | Specification | Fine Scale/N.m | Length/mm | Width/mm | Height/mm | Weight/Kg | ||
| N.m | Lbf.ft | N.m | Lbf.ft | ||||||
| DP02501 | 1-5 | 2-9 | 9x12 | 0.05 | 0.067 | 208 | 28 | 28 | 0.4 |
| DP02502 | 2-12 | 2-9 | 9x12 | 0.1 | 0.074 | 208 | 34 | 30 | 0.4 |
| DP02503 | 4-20 | 3-15 | 9x12 | 0.2 | 0.147 | 208 | 34 | 30 | 0.45 |
| DP02504 | 5-25 | 4-19 | 9x12 | 0.2 | 0.147 | 208 | 34 | 30 | 0.45 |
| DP02505 | 6-30 | 5-23 | 9x12 | 0.2 | 0.147 | 268 | 34 | 30 | 0.48 |
| DP02506 | 10-60 | 9-46 | 9x12 | 0.5 | 0.369 | 268 | 41 | 34 | 0.8 |
| DP02507 | 10-100 | 7-75 | 9x12 | 0.5 | 0.369 | 388 | 41 | 34 | 0.81 |
| DP02508 | 20-100 | 15-75 | 9x12 | 0.5 | 0.369 | 388 | 41 | 34 | 0.81 |
| DP02509 | 25-125 | 20-94 | 9x12 | 0.5 | 0.369 | 388 | 41 | 34 | 0.81 |
| DP02510 | 40-200 | 30-150 | 14x18 | 1.0 | 0.738 | 448 | 41 | 34 | 0.87 |
| DP02511 | 20-210 | 15-155 | 14x18 | 1.0 | 0.738 | 448 | 41 | 34 | 0.87 |
| DP02512 | 60-300 | 45-226 | 14x18 | 1.0 | 0.738 | 603 | 45 | 38 | 1.87 |
| DP02513 | 65-335 | 50-250 | 14x18 | 1.0 | 0.738 | 603 | 45 | 38 | 1.87 |
| DP02514 | 65-350 | 50-260 | 14x18 | 1.0 | 0.738 | 603 | 45 | 38 | 1.87 |
| DP02515 | 80-400 | 60-300 | 14x18 | 2.0 | 1.475 | 653 | 45 | 38 | 1.89 |
| DP02516 | 100-500 | 80-376 | 14x18 | 2.0 | 1.475 | 653 | 45 | 38 | 1.89 |
Details
Application
Working on lawnmower blades
Attaching roof trusses
Erecting wind turbines
Aerospace manufacturing
Electronics assembly
Robotics and automation
Research and development in various industries
Video
Literature
- 1.Working principle of manual torque wrenches
- 2.Repair Methods For Digital Torque Wrench
- 3.How Often Should I Calibrate My Torque Wrench
- 4.Types of Manual Torque Wrenches
- 5.Precautions for using preset torque wrenches
- 6.Basic knowledge of dial torque wrench
FAQs
How can one determine if a Plug-In Torque Wrench has reached the set torque value?
Plug-In Torque Wrenches typically indicate the achievement of a set torque
value through an audible click or sound,or visual indicators such as a dial or digital display.
These indicators alert the user when the desired torque has been reached, ensuring proper tightening.
What are some common problems and faults associated with Plug-In Torque Wrenches?
Common problems with Plug-In Torque Wrenches include incorrect torque settings,
damage or wear to the wrench's mechanism, loose or damaged components, and calibration drift over time.
To resolve these issues, verify torque settings, inspect and replace damaged components,
recalibrate as needed, and seek professional assistance if necessary.
